Advanced EasySafe Low Voltage Exit Sign - Addressable - ISO Arrow Down (ESXL/ISOAD)
SKU
ESXL/ISOAD
£263.65
£219.71
LuxIntelligent ESXL/ISOAU EasySafe Low Voltage Escape Sign, Wall and Ceiling Mount, Maintained, Addressable, Single Sided - ISO Arrow Down
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Advanced EasySafe Low Voltage Exit Sign - Addressable - ISO Arrow Down (ESXL/ISOAD)

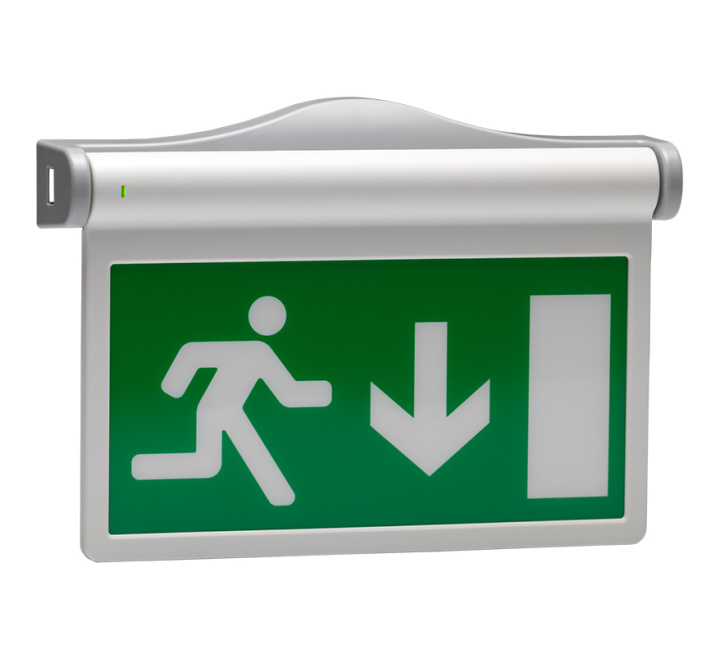

LuxIntelligent ESXL/ISOAD is an EasySafe Low Voltage Addressable Escape Sign. A single-sided, standard 3-hour maintained unit with an ISO format Arrow Down legend. It can be wall or ceiling mounted and comes with a base and battery pack.
It provides a 25m viewing distance in both mains and emergency modes. Fully supports the LuxIntelligent test system and is powered via the Panel. Uses the I/O peripheral to monitor local power distribution boards which allows the lights to switch to maximum output in the event of a power outage.
Only available as a maintained fitting. No local mains feed required.
Key Features of the ESXL/ISOAD |
|---|
|
> Compatible with LuxIntelligent test system
> Addressable > Single sided, ISO arrow down > Wall or ceiling mounted > Standard 3-hr maintained unit > Comes with base and battery pack > 25m viewing distance > Maintained fitting with low illumination under normal conditions > No 230V connection required > Low energy, long life > Powered by 32V data cable > EN60598.2.22 compliant |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | ESXL/ISOAD |
Write Your Own Review
FAQ’s for Advanced EasySafe Low Voltage Exit Sign - Addressable - ISO Arrow Down (ESXL/ISOAD)
No questions yet. Be the first to ask the question!
Product Specification for Advanced EasySafe Low Voltage Exit Sign - Addressable - ISO Arrow Down (ESXL/ISOAD)
| Dimensions: |
L:301mm x H:212mm x D:80mm |
| Supply Voltage: | Low Voltage (32V) |
| Operating Voltage: | 18 - 32 V |
| Quantity: | Up to 50 EasySafe type luminaires per loop |
| Light Source: | High output white LEDs |
| Cable termination: | 15/16 AWG, 1.3/2.0mm2 |
| Body: | PC/ABS 2950 |
| Colour: | White Body (RAL9003), grey base & bracket (Pantone 429) |
| Weight: | 0.738kg including battery pack |
| Batteries: | 4 AAA NiMH 4.8V 600mAH pack |
| Viewing distance: | 25m |
