Advanced LED-Lite 3W LED Emergency Downlighter - Addressable - Surface Mount - Non-Maintained - Corridor Lens (LLED3/NM3/P/SUR/C)
SKU
LLED3/NM3/P/SUR/C
£324.38
£270.32
LuxIntelligent LLED3/NM3/P/SUR/C LED-Lite Downlighter, Surface Mount, Addressable, Non-Maintained, Corridor Lens (White Surface Mount Box)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Advanced LED-Lite 3W LED Emergency Downlighter - Addressable - Surface Mount - Non-Maintained - Corridor Lens (LLED3/NM3/P/SUR/C)

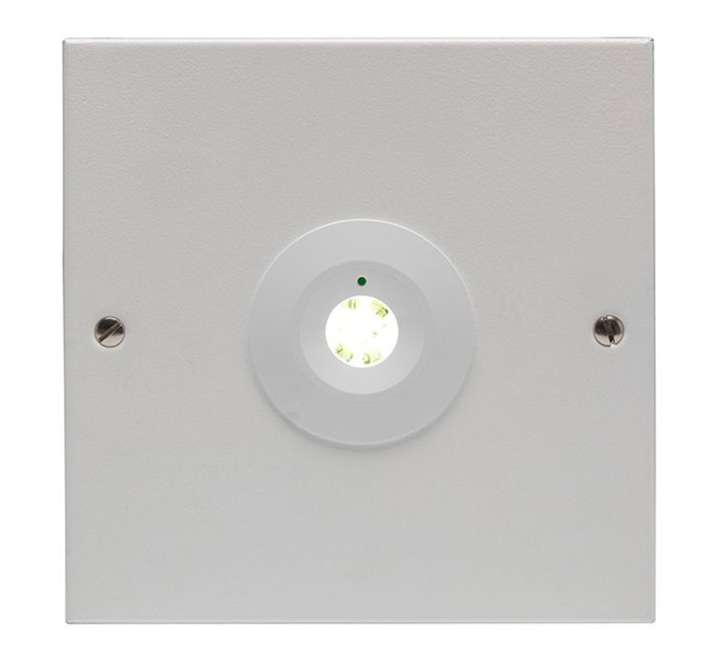

LuxIntelligent LLED3/NM3/P/SUR/C is a white, addressable, non-maintained LED-Lite downlighter with a Corridor lens.
Requires a 230V permanent supply as well as addressable wiring. Ensures effective non-maintained emergency lighting for 3 hours via integral nickel-metal hydride batteries. Emergency lighting control gear is supplied.
A high brightness green LED is incorporated into the bezel to indicate battery charge status. Surface mounted unit with BESA rear entry and 20mm knock outs for conduit entry.
Key Features of the LLED3/NM3/P/SUR/C |
|---|
|
> Addressable
> Non-maintained > Asymmetrical corridor lens > Robust and self contained > Discrete surface mounting > White LEDs > White surface mount box > Low power consumption > Integral non-maintained emergency lighting control gear > 3-hour emergency lighting via integral batteries > Fully supports the LuxIntelligent test system > IP42 rated |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | LLED3/NM3/P/SUR/C |
Write Your Own Review
FAQ’s for Advanced LED-Lite 3W LED Emergency Downlighter - Addressable - Surface Mount - Non-Maintained - Corridor Lens (LLED3/NM3/P/SUR/C)
No questions yet. Be the first to ask the question!
Product Specification for Advanced LED-Lite 3W LED Emergency Downlighter - Addressable - Surface Mount - Non-Maintained - Corridor Lens (LLED3/NM3/P/SUR/C)
| Dimensions |
W:195mm x H:195mm x D:40mm |
| Light Source: | 3W white LED |
| Lens type: | Corridor |
| Cable entry: | 2*20mm entries, 1*BESA (rear) |
| Ambient Temperature: | 0o to 40oC |
| Battery: | 2.4V 1.8Ah NiCd |
| Body: | Steel back box with steel fascia plate |
| Supply Voltage: | 230 V (220 - 240V) @ 50Hz |
| Supply Power: | 1.5W |
| Lumens (emergency): |
160 lm |
| IP rating: | IP42 |
| Weight: | 1.5kg |
