Kidde UC240 Kit for Fire Panel, UltraSync Communicator with IP and 4G/2G (2010-2-UC240-KIT)
Product Details for Kidde UC240 Kit for Fire Panel, UltraSync Communicator with IP and 4G/2G (2010-2-UC240-KIT)
The UC240 UltraSync communicator is a dual path alarm signalling unit for transmitting alarm signals from a customer’s alarm panel to a Central Monitoring Stations (CMS). The monitoring path is based on IP and SIM 4G/2G mobile technology. The unit is designed for use in both security and fire systems.
Alarm panel interfaces
• 16 general purpose alarm inputs (Logic High = +2 to +30 V / Logic Low = <1.3 V)
• 3 relay outputs
• Unconnected state: Logic Low
• Standard screw terminals
• Programmable function output-for remote control of site devices
• Line fault output-for status indication at site of alarm signalling path
• Dial Capture with phone line simulation
• Onboard RS232 or RS485 for direct panel interface to some panels
Dial capture features
• Converts dialler alarm systems into high security signalling devices
• Alarm panel interface supports: Ademco Contact ID, Ademco Hi Speed, Ademco 4+1, Ademco 4+2, SIA 1/2/3
Configuration
• Simple single push button pin learn
• iOS and Android installer app
• Using on board menu driven by push buttons
Key Features of the 2010-2-UC240-KIT |
|---|
|

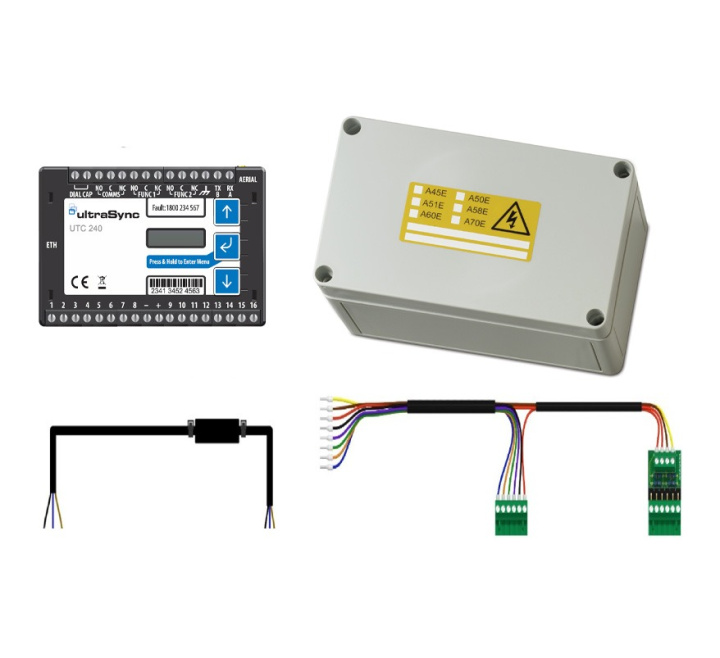

> UC240 kit
> Enclosure, IO cable w EOL > Serial cable accessories > for Fire Panel, UltraSync communicator with IP and 4G/2G dual path suitable > Dual-path monitoring for low, medium and high risk sites, covering intruder applications, fire and more > These monitored alarm signalling devices are small enough to fit inside most alarm panels. They use two signalling paths – if the primary path is down, the secondary path kicks in. If this happens, the secondary path will use the primary path reporting and polling times > The primary path uses IP technology to send alarm signals over the customer’s network or broadband hub > The secondary path uses 4G or 2G mobile connectivity – with dual SIMs for extra resilience > EN50131 Grade 3 and EN50136 certified for intrusion systems > EN54-21 certified for fire alarm systems |
| Brand | Kidde Commercial |
|---|---|
| Manufacturer Part No. | 2010-2-UC240-KIT |
| System Type | Addressable |
| Warranty | 2 Years |
FAQ’s for Kidde UC240 Kit for Fire Panel, UltraSync Communicator with IP and 4G/2G (2010-2-UC240-KIT)
Product Specification for Kidde UC240 Kit for Fire Panel, UltraSync Communicator with IP and 4G/2G (2010-2-UC240-KIT)
| Product no.: | 2010-2-UC240-KIT |
| Description: | Kidde UC240 Kit (incl. enclosure and cable accessory) for fire panel, UltraSync communicator with IP and 4G/2G dual path suitable |
| Dimensions: | 95mm x 67mm x D:17mm |
| Product line: | UltraSync |
| Network: | Communicator type: 2G, 4G, Cellular, IP GSM frequency: LTE: Penta-Band 700 (Bd28) / 800 (Bd20) / 900 (Bd8) / 1800 (Bd3) / 2100 MHz (Bd1) + GPRS Dual band (900/1800 MHz) |
| Reporting: | Protocols: Contact ID, SIA Supported receivers: UltraSync |
| Interfaces: | Ethernet: RJ-45 1000 Mbps Ethernet Interface Antenna: Yes, included |
| Input/output: | Inputs: 16 general purpose alarm inputs Outputs: 3 relay outputs |
| Operating voltage: | 9.5 to 30 VDC |
| Current consumption: | 85mA @12 VDC, 185mA @24 VDC (Maximum loading) 45mA @12 VDC, 100mA @24 VDC (Normal operation) |
| Environmental: | Operating temperature: -10 to +55°C Relative humidity: 5 - 75% non-condensing EN50130-5 ; Class II - Indoor (general) |
| Regulatory: | EN50131 Grade 3, EN50136, EN54-21 |
