Discontinued Product - No Compatible Replacements

This product has been discontinued and there are no compatible replacements for this radio-interlink base. Please contact us for further information and advice.

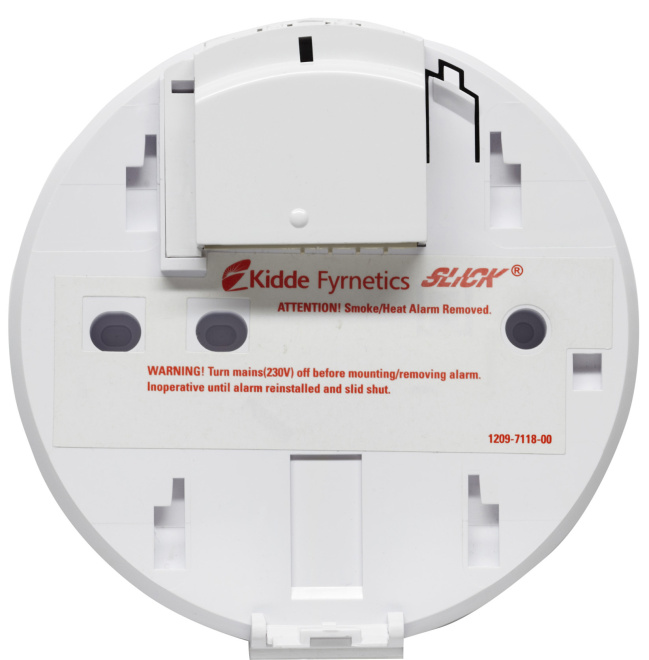

Product Details for Kidde RF-SFTP Wireless Base for Kidde Slick Alarms

By utilising the Kidde RF-SFTP Wireless Base instead of the standard base with any of the Kidde Slick Alarms you can wireless interconnect a series of Smoke/Heat alarms without the need for cable and the costs that come with wiring systems.

The RF-SFTP allows you to wireless connect up to 15 Bases on a single system and is extremely simply to install and connect, taking a matter of minutes per detector and base. The base has a lithium battery designed to provide up to 3 months power supply on a mains failure.

Not only can you have a completely wireless system but these bases can also be used to extend existing hardwired systems. Ideal for extending a pre-installed system or for reaching areas of a property where cabling to the area is not possible.

Operational Characteristics:

  • If a connected smoke or heat alarm is activated to an "alarm state" the RF-SFTP base transmits an alarm activation signal via Radio Frequency, causing other units on the system to also enter an alarm state.
  • LED lights provide visual status information of the unit

Interconnect Options:

The Kidde RF-SFTP Wireless Base is suitable for use with the following devices:

  • 1SFW/1SFWR
  • 2SFW/2SFRWR
  • 3SFW/3SFWR

Central Control Available:

Central control of all devices using the Kidde RF-SFTP base if the system is installed utilising the Kidde KN-RTH-RF Remote Test and Hush Unit.


Key Features of the RF-SFTP

> - Wireless interconnect 15 devices. - Central Control Available. - For use with Kidde Slick Alarms. - Simple to install.

More information about Kidde RF-SFTP Wireless Base for Kidde Slick Alarms

More Information
Brand Kidde Safety Europe
Manufacturer Part No. RF-SFTP

Datasheets and Manuals for Kidde RF-SFTP Wireless Base for Kidde Slick Alarms

FAQ’s for Kidde RF-SFTP Wireless Base for Kidde Slick Alarms

Loading...



Ask Question

All questions will be displayed after moderation.

No questions yet. Be the first to ask the question!

Product Specification for Kidde RF-SFTP Wireless Base for Kidde Slick Alarms


Manufacturer: Kidde
Product Code: RF-SFTP
Approved To: * CE compliancy
* EMC directive 89/336/EEC
* R&TTE Directive 99/5/EC
* ETSI EN 301 489-1 V1.8.1 (2008-04)
* ETSI EN 301 489-3 V1.4.1 (2002-08)
* ETSI EN 300 220-1 V2.3.1 (2009-04)
* ETSI EN 300 220-2 V2.3.1 (2006-04)
* EN 55022:2006
* EN 61000-3-2:2006
* EN 61000-3-3:2005
Product Weight: * Single unit in box – 248 grams
* Single unit out of box – 179 grams
Wireless Range: Greater than 150m in Free Space
Dimensions: Depth:35 x Diameter:127mm
Supply Voltage: 230V AC, 50Hz (Nominal UK Voltage)
Operating Temperature Range: 0°C to 40°C
Operating Humidity Range: 0% to 95% (non-condensing) relative humidity (alarms are up to 93%Rh)
