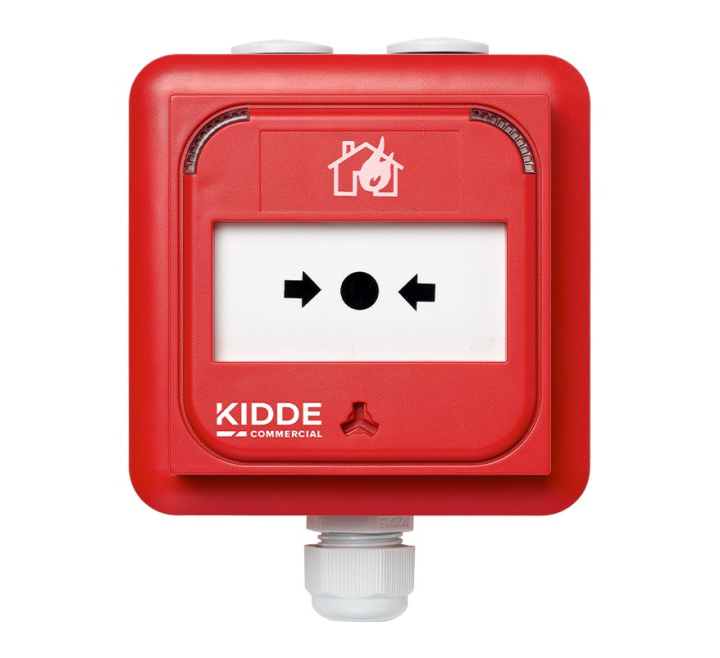

Kidde Intelligent Addressable Weatherproof Manual Call Point (Red) (KE-DM3010R-IP)
SKU
KE-DM3010R-IP
£151.55 £126.29
Kidde Intelligent Addressable Weatherproof Manual Call Point (Red) (KE-DM3010R-IP)
Product Details for Kidde Intelligent Addressable Weatherproof Manual Call Point (Red) (KE-DM3010R-IP)
The KE-DM3000 Series is an intelligent range of addressable, Excellence Series manual call points. The KE-DM3010R-IP is a weatherproof, red, single action MCP with a House-on-Fire functional indication. It is delivered complete with resettable element, test connector and test key. Multiple optional accessories are available to facilitate most in- and outdoor installation requirements.
Installation and maintenance friendly
The front facing access for an aesthetically matching test key allows unhindered access regardless of the installation location. The MCP key doubles as a test and disassembly tool allowing removal of the MCP front cover without the need for additional tools.
Aesthetics
This weatherproof single action MCP is a standard profile MCP suitable for surface mount installations. It is supplied with a colour matched weatherproof back box. With its designer dual, tricolour LEDs it offers 180°, clear local indication of its operational status, even from a side view. The clean face of the MCP is further enhanced by a front access & test key facility.
Compatibility
The KE-DM3000 range may be used on all Kidde Excellence Series fire systems, and are also compatible with legacy Aritech fire systems. They can in many cases be deployed into existing systems without CIE configuration changes.
Key Features of the KE-DM3010R-IP |
|---|
| > Reliable single action manual call point for surface mounting > Dual, tri-colour status indicators offers 180° alarm visibility > Tamper resistant design with resettable or frangible element > Unobtrusive front facing test facility > Standard mounting options facilitates easy retrofitting to existing installations > Back box with rear, top and bottom cable entry > Screen connection terminal in the back box for electrically noisy installations > Pluggable connector with link through facility for ease of installation and pre-commissioning testing > An alarm flag on the face of the manual call point allows alarm indication even without alarm LEDs > Fast, no-tools-required maintenance using the test key > Up to 128 devices supported per loop |
| Brand | Kidde Commercial |
|---|---|
| Manufacturer Part No. | KE-DM3010R-IP |
| Product Range / Series | Kidde Excellence Series |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Kidde Excellence Series |
| Colour | Red |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Kidde Intelligent Addressable Weatherproof Manual Call Point (Red) (KE-DM3010R-IP)
No questions yet. Be the first to ask the question!
Product Specification for Kidde Intelligent Addressable Weatherproof Manual Call Point (Red) (KE-DM3010R-IP)
| Product no.: | KE-DM3010R-IP |
| Description: | Kidde Excellence Series Intelligent Addressable Manual Call Point, Red, Weatherproof |
| Dimensions: | 108mm x 108mm x D:69mm |
| Compatible products: | Detection devices: N-MC-FC, N-MC-FE |
| Status indication: | Dual LEDs, Alarm (red constant), Isolated (yellow constant), Fault (yellow blinking), Communication (green blinking) |
| User interface: | LEDs, Alarm Flag |
| Compatibility: | Excellence and legacy Aritech series fire systems |
| Connectivity: | 2-wire loop |
| Addressing method: | DIP switches |
| Power supply type: | Loop powered |
| Operating voltage: | 17 to 38 VDC |
| Current consumption: | 180 μA (Quiescent) 2.8 mA (Alarm) |
| Cable specification: | 0.404 to 2.05 mm |
| No. of cable cores: | 2 |
| Terminals: | 4 (A+/A-;B+/B-) |
| Detection: | Principle: Push button/switch Monitoring: Activated, Fault, Off Response time: <3s Installation height: Determined by local regulation |
| Environment: | Vandal proof: No Operating & storage temperature: -25 to +72°C Relative humidity: 10 - 95% non-condensing |
| Cable entries: | 1 × threaded MK20 (Top or bottom), 2 × threaded MK20 (Bottom or top) |
| Mounting type: | Wall |
| Colour: | Red (RAL3028) |
| Material (body): | Flame retardant ABS |
| Functional marking: | House on Fire |
| IP rating: | IP67, Indoor, Outdoor |
| Regulatory: | CE, REACH, RoHS3, WEEE, CPR, EN54:11 |
| Weight: | 267g with backbox |
