Kidde Intelligent Addressable Heat Detector with Isolator (KE-DT3101W-HAB)
Product Details for Kidde Intelligent Addressable Heat Detector with Isolator (KE-DT3101W-HAB)

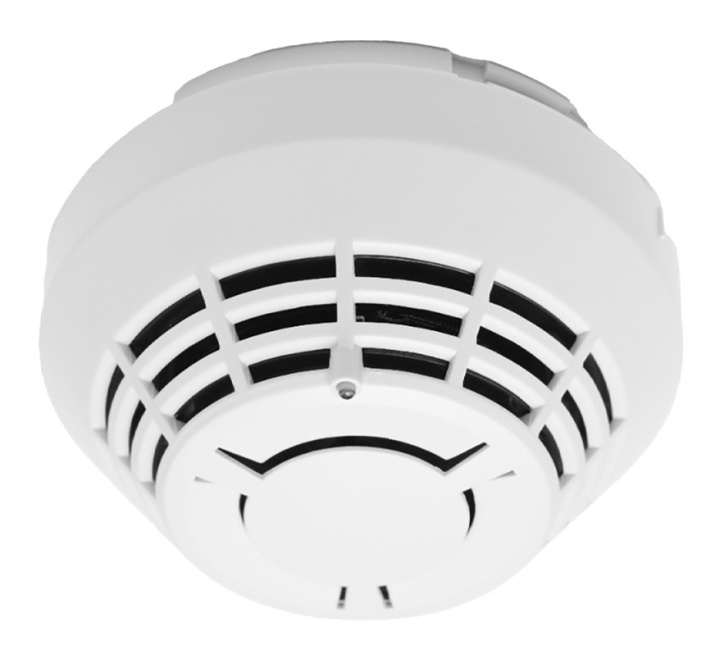

The DT3101W-HAB is a Kidde Excellence series, traffic white addressable heat detector with integrated short circuit isolation. It supports EN54 Class A with static and rate-of-rise temperature response, as well as Class B with rate-of-rise response. It combines a low profile design with tri-colour status indication with 360° visibility. A remote indicator output is available as standard that supports a remote indicator up to 30 m away.
The innovative Excellence range of intelligent addressable devices offers advanced features for reliability and peace of mind. Coupled with features for ease of installation and maintenance on new fire detection systems, it’s a perfect match for exceptional overall performance.
Communication protocol
An enhanced protocol ensures the overall integrity and error-free operation of the system. The Excellence series protocol provides features like CRC error checking and multiple bus cycle codes to ensure reliability between panel and device communication. The Kidde Excellence protocol still support legacy 2000 series devices in combination with the Kidde Excellence series devices.
User friendly
All detectors are individually identified by easily setting an address through 2, modern design rotary switches. The address is a directly identified number and does not require binary or hexadecimal conversions that significantly reduces the risk of incorrect addressing.
Installation and maintenance friendly
Self-testing and drift compensation ensure safe operation with a contamination warnings provided when maintenance is needed.
All Excellence series detectors are compatible with a standard base which makes installation planning seamless and detectors easily interchangeable.
Key Features of the KE-DT3101W-HAB |
|---|
|
> Integrated loop short circuit isolation ensures operation during a single short circuit on the loop
> Short circuit isolation on remote output for additional device protection > Automatic self testing > Static and rate-of-rise temperature support > Alarm, pre alarm, isolation, fault indicators > ItsMe, and communications for operational status > 360° indicator visibility > Mechanical rotary addressing > Event logging > All alarm levels EN54 certified |
| Brand | Kidde Commercial |
|---|---|
| Manufacturer Part No. | KE-DT3101W-HAB |
| Product Series | Kidde Excellence Series |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Kidde Excellence Series |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | 5 Years |
FAQ’s for Kidde Intelligent Addressable Heat Detector with Isolator (KE-DT3101W-HAB)
Product Specification for Kidde Intelligent Addressable Heat Detector with Isolator (KE-DT3101W-HAB)
| Product no.: | KE-DT3101W-HAB |
| Description: | Kidde Excellence series Intelligent Addressable Heat Detector with Isolator |
| Dimensions: | 100mm diameter x H:54mm |
| Compatibility: | Excellence series detection device KE-DB3010W |
| Colour / material: | Traffic White (RAL 9016) / PC/ABS |
| Mounting type: | Base |
| Status indication: | Tri-colour LED |
| Alarm levels: | 3 |
| Event log: | Available |
| Connectivity: | Excellence series, standard base |
| Addressing method: | Rotary switch |
| Power supply type: | Loop powered |
| Operating voltage: | 17 to 29 VDC |
| Communication voltage: | 4 to 11V pulsed |
| Current consumption: | 180 µA (quiescent at 24 VDC) 4.75 mA (alarm at 24 VDC) |
| Terminals: | 6 |
| Detection principle: | Static & temperature change |
| Monitoring: | Alarm threshold, Fault |
| Sensitivity: | Selectable |
| Coverage area: | < 56.3 m² |
| Rate-of-rise: | Supported |
| Installation height: | < 7.5 m |
| Output: | Quantity: 1 Output type/rating: Remote indicator Programmable: No Remote alarm output: <8mA |
| Isolation: | Type: Negative line break Quantity per loop: ≤128 Isolation/Reconnect voltage: 14 to 15.5 VDC Loop current: 5mA (isolated) Switch current: 1.05A (continuous) / 1.4A pulsed) Leakage current: <1 mA Series resistance: <0.08 Ω Impedance requirements: ≤32 devices between isolators |
| Vandal proof: | No |
| Operating temperature: | -10 to +65°C |
| Storage temperature: | -30 to +75°C |
| Relative humidity: | 10 - 93% non-condensing |
| IP rating: | IP20, Indoor |
| Regulatory: | CE, REACH, RoHS3, WEEE, CPR, EN54-5, EN54-17 |
| Weight: | 110g |
