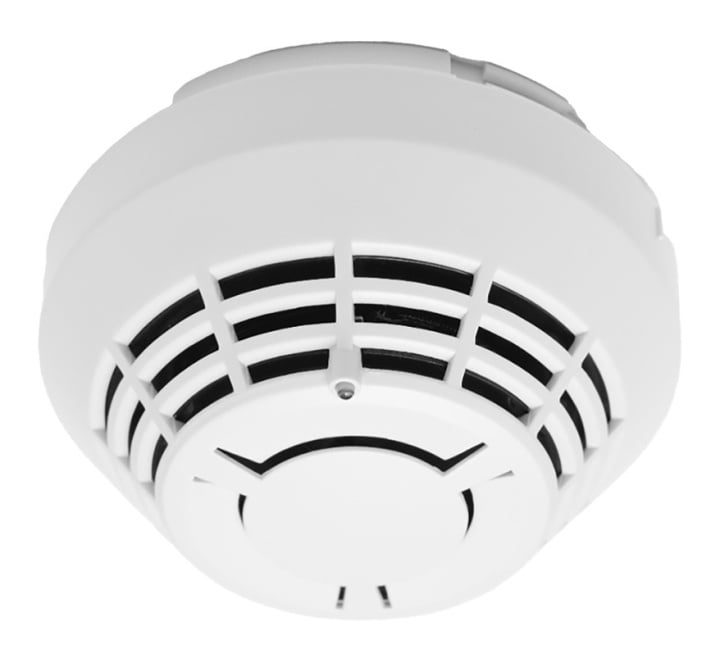

Kidde Intelligent Addressable Dual Optical / Heat Detector with Isolator (KE-DP3121W)
Product Details for Kidde Intelligent Addressable Dual Optical / Heat Detector with Isolator (KE-DP3121W)
The DP3121W is a Kidde Excellence series, traffic white addressable dual optical and heat detector with integrated short circuit isolation. It combines a low profile design with tri-colour status indication with 360° visibility. A remote indicator output is available as standard that supports a remote indicator up to 30 m away.
Detection reliability is ensured by combining dual optical wavelengths with multiple detection angles. This allows for state-of-the-art particle size detection that differentiates between real sources of alarm, or nuisance sources such as dust and steam. As a temperature detector Class A static and rate-of-rise modes are supported to further widen the application footprint.
The innovative Excellence range of intelligent addressable devices offers advanced features for reliability and peace of mind. Coupled with features for ease of installation and maintenance on new fire detection systems, it’s a perfect match for exceptional overall performance.
User friendly
All detectors are individually identified by easily setting an address through 2, modern design rotary switches. The address is a directly identified number and does not require binary or hexadecimal conversions that significantly reduces the risk of incorrect addressing.
Installation and maintenance friendly
Self-testing and drift compensation ensure safe operation with a contamination warnings provided when maintenance is needed.
All Excellence series detectors are compatible with a standard base which makes installation planning seamless and detectors easily interchangeable.
Communication protocol
An enhanced protocol ensures the overall integrity and error-free operation of the system. The Excellence series protocol provides features like CRC error checking and multiple bus cycle codes to ensure reliability between panel and device communication. The Kidde Excellence protocol still support legacy 2000 series devices in combination with the Kidde Excellence series devices.
Key Features of the KE-DP3121W |
|---|
|
> Integrated loop short circuit isolation ensures operation during a single short circuit on the loop
> Short circuit isolation on remote output for additional device protection > Nuisance alarm, steam & dust discrimination > Automatic self testing > Static and rate-of-rise temperature support > Alarm, pre alarm, isolation, fault indicators > 360° indicator visibility > Mechanical rotary addressing > Event logging > All alarm levels EN54 certified > May be used with Scorpion tester where detectors are difficult or impossible to access |
| Brand | Kidde Commercial |
|---|---|
| Manufacturer Part No. | KE-DP3121W |
| Product Series | Kidde Excellence Series |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Kidde Excellence Series |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Warranty | 5 Years |
FAQ’s for Kidde Intelligent Addressable Dual Optical / Heat Detector with Isolator (KE-DP3121W)
Product Specification for Kidde Intelligent Addressable Dual Optical / Heat Detector with Isolator (KE-DP3121W)
| Product no.: | KE-DP3121W |
| Description: | Kidde Excellence series Intelligent Addressable Dual Optical/heat Detector with Isolator, White |
| Dimensions: | 100mm diameter x H:54mm |
| Compatibility: | Excellence series detection device KE-DB3010W |
| Colour / material: | Traffic White (RAL 9016) / PC/ABS body, Brass contacts |
| Mounting type: | Base |
| Status indication: | Tri-colour LED |
| Alarm levels: | 11 |
| Event log: | Available |
| Connectivity: | Excellence series, standard base |
| Addressing method: | Rotary switch |
| Power supply type: | Loop powered |
| Operating voltage: | 17 to 29 VDC |
| Communication voltage: | 4 to 11V pulsed |
| Current consumption: | 200 µA (quiescent at 24 VDC) 4.75 mA (alarm at 24 VDC) |
| Terminals: | 6 |
| Detection principle: | Optical light scatter, forward and backward/Heat |
| Monitoring: | Alarm threshold, Contamination level, Fault |
| Sensitivity: | Selectable |
| Coverage area: | < 112 m² (optical) / < 56.3 m² (heat) |
| Particle sensitivity range: | 0.1 to 0.25 dB/m ±20% |
| Installation height: | < 10.5 m (optical) / < 7.5 m (heat) |
| Output: | Quantity: 1 Output type/rating: Remote indicator Programmable: No Remote alarm output: <8mA |
| Isolation: | Type: Negative line break Quantity per loop: ≤128 Isolation/Reconnect voltage: 14 - 15.5 VDC Reconnect voltage: 14 - 15.5 Loop current: 5mA (isolated) Switch current: 1.05 A (continuous) / 1.4 A (pulsed) Leakage current: <1mA Series resistance: <0.08 Ω Impedance requirements: ≤32 devices between isolators |
| Vandal proof: | No |
| Operating temperature: | -10 to +55°C |
| Storage temperature: | -30 to +75°C |
| Relative humidity: | 10 - 93% non-condensing |
| IP rating: | IP20, Indoor |
| Regulatory: | CE, REACH, RoHS3, WEEE, CPR, EN54-5, EN54-7, EN54-17 |
| Weight: | 124g |
