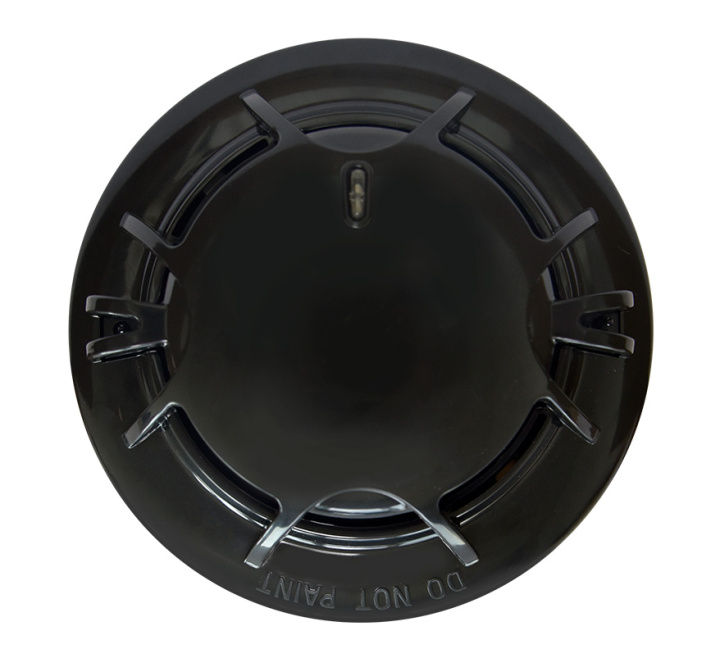

Kidde Conventional Multisensor Detector (Black) (NC-DPM-B)
SKU
NC-DPM-B
£34.52
£28.77
Kidde Conventional Multisensor Detector (Black) (NC-DPM-B)
In Stock
Product Details for Kidde Conventional Multisensor Detector (Black) (NC-DPM-B)
The Kidde NC-DPM-B conventional multisensor is a black variant of the NC-DPM-W. It combines photoelectric (optical) detection, fixed temperature and rate-of-rise detection technology. The smoke and heat sensors are integrated to provide a solution to a wide range of applications, allowing detection of more complex fire types. Amongst these are fire types generating black smoke and small particle fires such as those from burning alcohol.
Key Features of the NC-DPM-B |
|---|
|
> Supports drift compensation to enable good environmental adaptability
> Self-diagnostic > Local test activation with reed switch > Chamber contamination checking > All round LED visibility (360° viewing angle) avoids time spent on specific detector orientation > Configurable polling LED support > Remote indicator output > 2 Programmable smoke sensitivity levels > Ideal for false ceiling applications or dark ceilings |
| Brand | Kidde Commercial |
|---|---|
| Manufacturer Part No. | NC-DPM-B |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Colour | Black |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Kidde Conventional Multisensor Detector (Black) (NC-DPM-B)
No questions yet. Be the first to ask the question!
Product Specification for Kidde Conventional Multisensor Detector (Black) (NC-DPM-B)
| Code: | NC-DPM-B |
| Description: | Kidde Conventional Point Detector - Optical/Heat (Black) |
| Dimensions: | 54.5 mm (including base) x 100 mm Ø |
| Status indication: | Red LED |
| User interface: | Via LED - polling, fault, contamination and alarm |
| Compatibility: | NC-Series conventional panels and Excellence series conventional zone monitors |
| Reset voltage: | <1 VDC |
| Reset time: | <10s |
| Alarm levels: | 2 |
| Connectivity: | Zone connection - 2 core (polarity sensitive), RI connection - 2-core (polarity sensitive) |
| Operating voltage: | 9.5 to 28 VDC (24 VDC typical) |
| Current consumption: | <60 μA (Quiescent) ≤55 mA (Alarm) |
| Cable specification: | >1.0 mm² |
| No. of cable cores: | 2 |
| Terminals: | 4 |
| Detection principle: | Optical & Heat |
| Detection sensitivity: | Programmable |
| Detection zone length: | Panel dependent |
| Heat class: | A2R |
| Activation temperature: | 62°C |
| Output quantity: | 1 |
| Output type / rating: | Remote indicator |
| Remote alarm output: | Supported |
| Colour: | Black |
| Mounting: | Ceiling mount |
| Material (body): | ABS |
| Vandal proof: | No |
| Operating temperature: | -10 to +50°C |
| Relative humidity: | 0 to 95% noncondensing |
| IP rating: | IP2x (indoor) |
| Compliancy/certification/standards: | CE, REACH, RoHS 3, WEEE / CPR / EN54-5, EN54-7 |
| Compatible products: | Detection devices: NC-DB-B Notification device: PA25/3L |
| Weight: | ~110g (net) |
