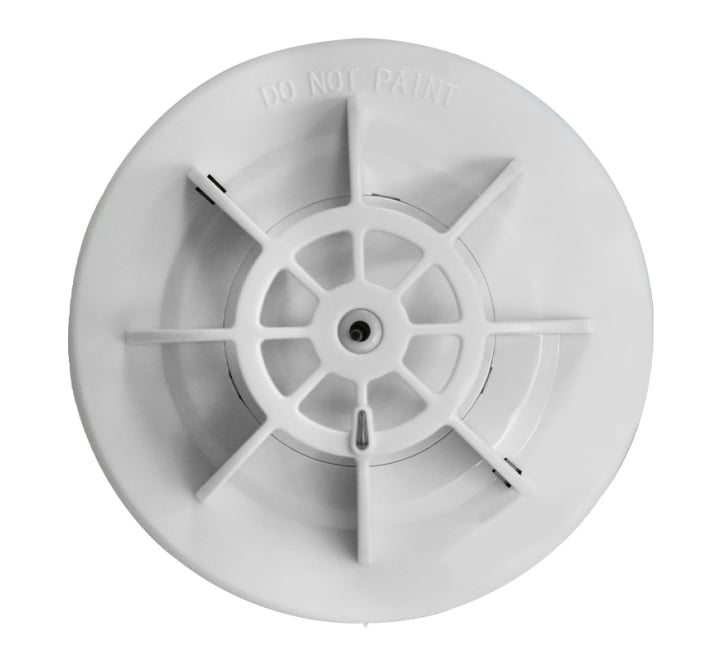

Kidde Conventional Heat Detector (White) (NC-DPH-W)
SKU
NC-DPH-W
£12.86
£10.72
Kidde Conventional Heat Detector (White) (NC-DPH-W)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Kidde Conventional Heat Detector (White) (NC-DPH-W)
The Kidde NC-DPH-W is a conventional heat detector with 3 programmable modes (A1R, A2S and BS).
Key Features of the NC-DPH-W |
|---|
|
> Self-diagnostic
> Local test activation with reed switch > All round LED visibility (360° viewing angle) avoids time spent on specific detector orientation > Configurable polling LED support > Remote indicator output > 3 Programmable operating levels (A1R, A2S and BS) |
| Brand | Kidde Commercial |
|---|---|
| Manufacturer Part No. | NC-DPH-W |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Kidde Conventional Heat Detector (White) (NC-DPH-W)
No questions yet. Be the first to ask the question!
Product Specification for Kidde Conventional Heat Detector (White) (NC-DPH-W)
| Code: | NC-DPH-W |
| Description: | Kidde Conventional heat detector (white) |
| Dimensions: | 54.5 mm (including base) x 100 mm Ø |
| Status indication: | Red LED |
| User interface: | Via LED - polling, fault, contamination and alarm |
| Compatibility: | GST100A Series conventional CIEs as well as GST I-9319 Zone Monitor |
| Reset voltage: | <1 VDC |
| Reset time: | <10s |
| Alarm levels: | 3 |
| Connectivity: | Zone connection - 2 core (polarity sensitive), RI connection - 2-core (polarity sensitive) |
| Operating voltage: | 9.5 to 28 VDC (24 VDC typical) |
| Current consumption: | <60 μA (Quiescent) ≤55 mA (Alarm) |
| Cable specification: | >1.0 mm² |
| No. of cable cores: | 2 |
| Terminals: | 4 |
| Detection principle: | Heat |
| Detection sensitivity: | Programmable |
| Detection zone length: | Panel dependent |
| Remote alarm output: | 1 |
| Colour: | White (RAL 9016) |
| Mounting: | Ceiling mount |
| Material (body): | ABS |
| Vandal proof: | No |
| Operating temperature: | -10 to +65°C |
| Relative humidity: | 0 to 95% non condensing |
| IP rating: | IP2x (indoor) |
| Compliancy/certification/standards: | CE, WEEE / LPCB / EN54-5 |
| Compatible products: | Detection devices: NC-DB-W, NC-DB2R-W, NC-DBD-W, NC-DBR-W Notification device: PA25/3L |
| Weight: | ~110g (net) |
