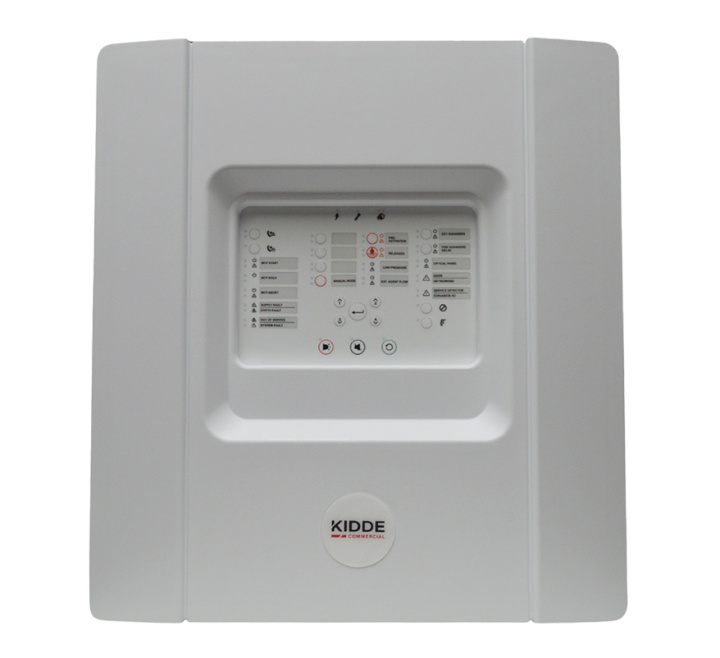

Kidde 3 Zone Enhanced Conventional Fire & Extinguishing Control Panel (NC-PX3E)
Product Details for Kidde 3 Zone Enhanced Conventional Fire & Extinguishing Control Panel (NC-PX3E)
The Kidde NC-PX3E is a networkable, enhanced conventional fire alarm and extinguishing control panel. It is supplied in local language with 3 fire zones that support up to 32 devices per zone. These zones may be configured for extinguishing in single zone or double zone configuration in any combination of zones. In addition the panel offers supervised outputs for first stage notification, second stage notification as well as optical warning indicators and actuator activation. Standard relay outputs are provided for EN54 compliance and system status notification, as well as multiple inputs for system control.
Panel Options
The panels support 2 types of auxiliary relay boards, one with 4 standard relays, and one with 4 supervised relays. With these boards the panel outputs may be expanded with up to 16 additional outputs.
The NC-PX3E supports class A (redundant ring) and B (standard bus) networking with up to 32 nodes including conventional and addressable panels and repeaters via an optional network interface. This allows full remote control and inputs to and from other nodes in the system, providing superior flexibility in system organisation and planning.
Panel Overview
The New Conventional fire control panels offer state of the art architecture in configurations that deliver an uncomplicated solution for small to mid-sized conventional applications. With their clean and attractive contemporary design, they fits with any decor. The basic and intuitive user interface with icons make easy their application everywhere.
With support for multiple lines of conventional detectors and accessories, these quick-to-configure systems offer versatility that benefits building owners and installation/maintenance companies alike.
Key Features of the NC-PX3E |
|---|
|
> Modern, elegant design with basic and intuitive user interface with icons.
> Easy removable parts for quick and easy installation > Normal & head-out supervision support per zone > Three detection zones > Single zone, double zone or any combination of zones configurable for release > 6 Pre-configured relays and 8 supervised inputs for extinguishing control > Configurable fire routing, sounder, extinguishing, reset and door monitoring delays > Configurable "Hold Mode" type-A or type-B > Sounders configurable for pulsing or continuous operation > Extinguishing agent flow confirmation > Continuous or resetable 24 VDC auxiliary supply > Auxiliary standard & supervised relay output support > Default support for special functions such as: - EN54 compliant user access levels - Basic & Advanced level configuration - mixed zones - front panel diagnostics with test & disable control - one-man walk test > Redundant networking to 1X conventional and 2X addressable nodes > Instrinsically safe and EN54-13 zone support |
| Brand | Kidde Commercial |
|---|---|
| Manufacturer Part No. | NC-PX3E |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional |
| Number of Zones | 3 |
| Colour | Grey |
| Warranty | 2 Years |
FAQ’s for Kidde 3 Zone Enhanced Conventional Fire & Extinguishing Control Panel (NC-PX3E)
Product Specification for Kidde 3 Zone Enhanced Conventional Fire & Extinguishing Control Panel (NC-PX3E)
| Code: | NC-PX3E |
| Description: | KIDDE Enhanced Conventional Fire & Extinguishing Panel - 3 Zone |
| Dimensions: | W:440mm x H:480mm x D:140mm |
| System capacity (device count): | up to 1260 |
| Network node size: | up to 21 |
| Power supply type: | VAC |
| Power consumption: | 4 A @ 24 VDC |
| Operating voltage: | 110 VAC @ 50 Hz or 230 VAC @ 50 Hz (+10% -15%) Cable type: 3 x 1.5 mm² (live, neutral, earth) |
| Current consumption: | 3.15 A @ 110/1.5A @ 240 VAC 2.78 A (alarm, no devices) 0.39 mA (quiescent, no devices) |
| Max. loop capacity: | 3 |
| Zone capacity: | Up to 3 |
| Operating voltage: | 22 VDC (18 to 24 VDC) |
| No. of devices per zone: | 20 max. |
| Rating: | 65 mA max. load |
| Cable rating: | 40 ohm (max cable resistance), 500 nF (max cable capacitance) |
| Standby battery capacity: | 2 x 12V, 12 Ah (SLA) |
| Supervised outputs: | 4 |
| Use: | Fire sounders, Extinguishing sounders, Optical indications, Actuator |
| Notification: | 2 x 500 mA @ 24 VDC |
| Visual indicators: | 1 x 500 mA @ 24 VDC |
| Actuator: | 1 x 1A @ 24 VDC |
| Non supervised outputs: | 4 |
| Use: | Hold mode, Abort mode, Manual mode, Release indication |
| Specification: | 6 x 2A @ 30V |
| Supervised input: | 6 |
| Use: | MCP start, MCP hold, MCP abort, Pressure switch, Gas flow, Door monitor |
| Non supervised input: | 2 |
| Use: | Auto/manual mode, Remote reset |
| Colour: | Grey (RAL 7035) |
| Operating temperature: | -5°C to +40°C |
| Storage temperature: | -20°C to +70°C |
| Relative humidity (max.): | 10 - 95% RH (non condensing) |
| IP rating: | IP30 (indoor) |
| Compliancy/Certification: | CPD, RoHS, WEEE / EN12094-1, EN54-2, EN54-4 |
| Auxiliary supply output: | 24 VDC (21 - 28 VDC), 250mA max. load |
| Cable entries: | Ø 20 mm - 20 / 2 / 26 (top/bottom /rear) |
| Form factor: | Medium |
| Mounting: | Surface |
| Weight: | 6kg (shipping) 3.9kg (without battery) |
