Cavius 10 Year Longlife Battery Powered Radio-Interlink Heat Alarm (CV3106)
SKU
CV3106
£68.99
£57.49
Cavius 10 Year Longlife Battery Powered Radio-Interlink Heat Alarm (CV3106)
- Buy 10 for £66.86 £55.72 each and save 3%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Cavius 10 Year Longlife Battery Powered Radio-Interlink Heat Alarm (CV3106)

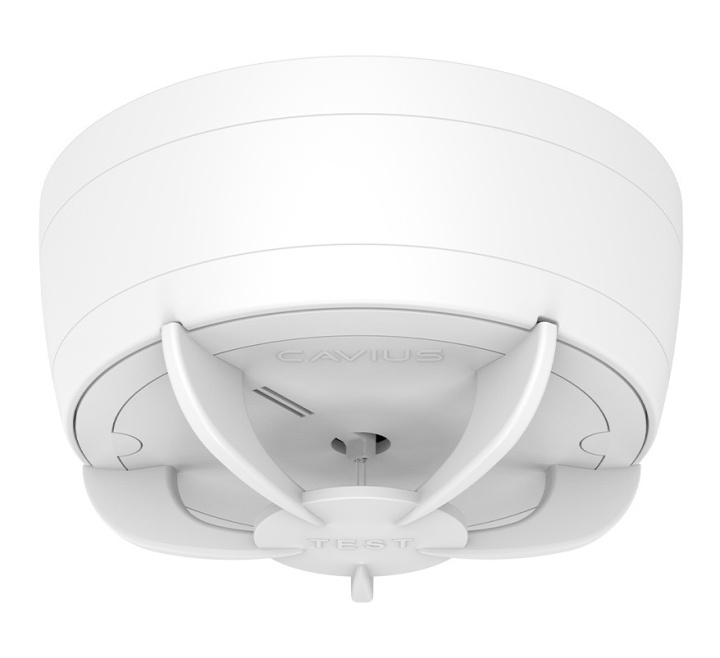

The Cavius CV3106 is a battery-operated 78mm diameter heat alarm in the Cavius family, with built-in RF connectivity. Can be interlinked with up to 31 other Cavius devices including RF smoke and heat alarms, Cavius relay and ancilliary devices.
Key Features of the CV3106 |
|---|
|
> Thermal heat alarm device with wireless interlink
> For homes or garages at risk of smoky, dusty or humid environments e.g. kitchen or garage area > 78mm x 78mm x 42mm > Can be connected with other alarms from the CAVIUS Wireless alarm family or function as a stand alone alarm > RF Interconnection Built in (no base or module required) > Connect up to 32 Alarms in the CAVIUS Wireless Family Range > 10 Year Lithium Battery > Dual Mesh System > Large Test / Hush Button > 10 year manufacturer warranty |
| Brand | Cavius |
|---|---|
| Manufacturer Part No. | CV3106 |
| Warranty | 10 Years |
| Colour | White |
| Interlink Options | Radio-Interlink (RF) Only |
| Detectable Medium | Heat |
| Sensor Type | Thermistor |
| Primary Power Source | Longlife Batteries (Lithium) |
| British Standard Grade (BS5839-6) | Grade F1 (Battery Powered - Sealed Longlife) |
| Regional Compliances | 2022 Scottish Legislation Compliant |
Write Your Own Review
FAQ’s for Cavius 10 Year Longlife Battery Powered Radio-Interlink Heat Alarm (CV3106)
No questions yet. Be the first to ask the question!
Product Specification for Cavius 10 Year Longlife Battery Powered Radio-Interlink Heat Alarm (CV3106)
| Code: | CV3106 |
| Description: | Kidde Cavius Thermal heat alarm device with wireless interlink |
| Dimensions: | Dia:78mm x H:42mm |
| Device type: | Thermal heat alarm device with wireless interlink |
| Operation AC/DC: | DC |
| Battery type: | 3v CR123A lithium battery 1600mAh (non-replaceable) |
| Battery life: | Minimum 10 year life in normal operating condition (Based on a weekly testing). |
| Low battery indication: | A short acoustic “beep” will sound and LED flash every 48 seconds when the voltage is below 2.85V. In this stage it will continue for minimum 30 days, and can drive the alarm for 4 minutes. |
| Interlink frequency: | 868 MHz, max. 20mW |
| Signals: | Transmits RF signals to the Cavius Wireless Family at alarm |
| Normal operation: | LED flashes every 48 seconds for normal operation. |
| Interlink range: | Minimum 100m in open field. Range depends on the building materials and will need to be tested in each individual case. |
| Sound: | 85dB (A) @ 3m Heat alarm condition is indicated by a series of 3 successive tones |
| Visible indicators: | Red LED: Alarm - flashes every 0.5 seconds Normal operation - flashes every 48 seconds |
| Push button functions: | Set up - press to send out house code to other alarms Hush - During alarm condition this silences it for 10 mins Test - When not in alarm, press. Audible & visible indicators activate if the sensor is OK |
| Detection timing: | The heat detector is reading every two seconds |
| Operating temperature: | +4°C to +38°C (tested from 0 - 55°C) |
| Humidity range: | Up to 90% RH (non-condensing) |
| Storage and transport: | -20°C to 60°C, up to 93% RH non-condensing |
| Certification/Approval: | BS 5446-2:2003 BSI Kitemark™EN 14604:2005+AC:2008 |
| Manufacturer's Warranty: | 10 years |
| Weight (base alarm): | 98g |
