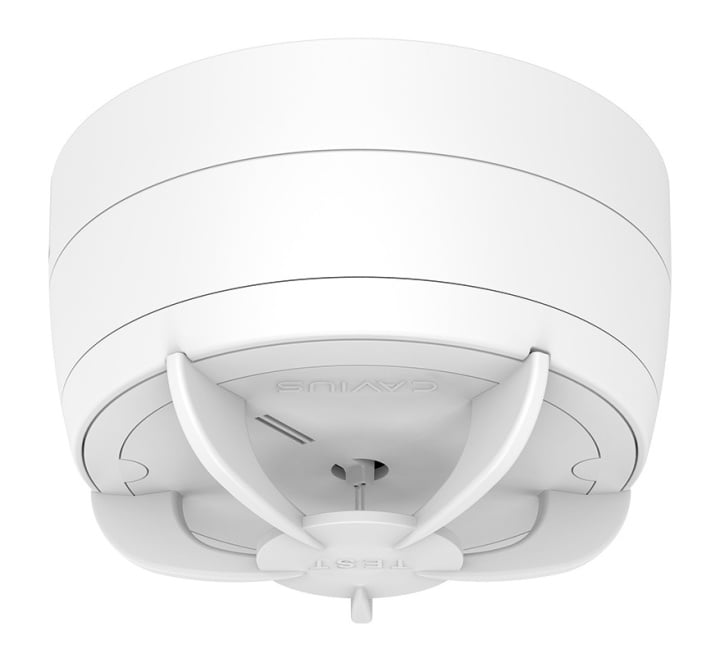

Cavius Mains Powered Radio-Interlink Heat Alarm with 10 Year Backup (CV3202)
SKU
CV3202
£90.23
£75.19
Cavius Mains Powered Radio-Interlink Heat Alarm with 10 Year Backup (CV3202)
- Buy 10 for £87.44 £72.87 each and save 3%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Cavius Mains Powered Radio-Interlink Heat Alarm with 10 Year Backup (CV3202)
The Cavius CV3202 is a mains-powered 78mm diameter heat alarm in the Cavius family, with built-in RF connectivity. Can be interlinked with up to 31 other Cavius devices including RF smoke and heat alarms, Cavius relay and ancilliary devices
Key Features of the CV3202 |
|---|
|
> Thermal heat alarm device with wireless interlink and battery back-up
> Suitable for homes that may have smoky, dusty or humid environments, such as the kitchen or garage area > 78mm mains-powered heat alarm > Can be connected with other alarms in the CAVIUS Wireless alarm family or function as a stand alone alarm > RF Interconnection built in (no base or module required) > Connect up to 32 Alarms in the CAVIUS Wireless Family Range > 10 Year Lithium back-up battery > Large Test / Hush Button > 10 year manufacturer’s warranty |
| Brand | Cavius |
|---|---|
| Manufacturer Part No. | CV3202 |
| Warranty | 10 Years |
| Interlink Options | Radio-Interlink (RF) Only |
| Detectable Medium | Heat |
| Sensor Type | Thermistor |
| Primary Power Source | Mains Powered (230V) |
| British Standard Grade (BS5839-6) | Grade D1 (Mains Powered with Sealed Back-up Battery) |
| Regional Compliances | 2022 Scottish Legislation Compliant, 2022 Welsh Legislation Compliant |
Write Your Own Review
FAQ’s for Cavius Mains Powered Radio-Interlink Heat Alarm with 10 Year Backup (CV3202)
No questions yet. Be the first to ask the question!
Product Specification for Cavius Mains Powered Radio-Interlink Heat Alarm with 10 Year Backup (CV3202)
| Code: | CV3202 |
| Description: | Kidde Cavius Mains RF Heat Alarm with sealed-in lithium back-up battery and built in RF interconnection |
| Dimensions: | D:78mm x H:48mm |
| Device type: | Mains powered thermal heat alarm device with wireless interlink and battery back-up. The alarm makes a reading every 2 seconds. Must be placed a max. of 5.3m away from any heat source. |
| Operation AC/DC: | 110V AC, 230V AC |
| Battery type: | CR2 back up battery (non-replaceable) |
| Battery life: | Minimum 10 years life of back up battery (1 year without power supply) |
| Low battery indication: | A short acoustic “beep” will sound and LED flash every 48 seconds when the voltage is below 2.85V. In this stage it will continue for minimum 30 days, and can drive the alarm for 4 minutes. |
| Interlink frequency: | 868 MHz |
| Signals: | Transmits RF signals to the Cavius Wireless Family at alarm |
| Normal operation: | Red LED flashes every 48 seconds for normal operation. Green LED shows mains power on. |
| Interlink range: | Minimum 100m in open field. Range depends on the building materials and will need to be tested in each individual case. |
| Sound: | 85dB (A) @ 3m in anechoic chamber Heat alarm condition is indicated by a series of 3 successive tones |
| Visible indicators: | Red LED: Heat alarm - When a rapid change of temperature is detected, the heat alarm will go into ‘Alarm Mode’ and will sound the alarm signal or the LED will flash rapidly Normal operation - flashes every 48 seconds Green LED shows the alarm is powered by mains supply |
| Push button functions: | Set up - press to send out house code to other alarms Hush - During alarm condition this silences it for 10 mins Test - When not in alarm, press. Audible & visible indicators activate if the sensor is OK |
| Detection timing: | Heat detector is reading every 2 seconds |
| Mounting: | Wall & ceiling. Set of 2 x screws and 2 x plugs included |
| Operating temperature: | +4°C to +38°C (tested from 0 - 55°C) |
| Humidity range: | Up to 90% RH (non-condensing) |
| Storage and transport: | -20°C to 60°C, up to 93% RH non-condensing |
| Certification/Approval: | Kitemark, N54-5 A1/R, RoHS, REACH, RED, SGS (RF approved) |
| Associations / Committees: | NF292 committee GIFSID manufacturer's association of domestic fire safety equipment |
| Quality assurance: | Sound - 100% tested in special designed sound chamber Sensitivity - 100% tested Power consumption: 100% tested Battery voltage & internal resistance: 100% tested Alarm function: 100% tested Interconnection: 100% tested Visual appearance: 100% tested |
| Manufacturer's Warranty: | 10 years |
| Weight: | 108g (Excl. screws, plugs & mounting ring) |
