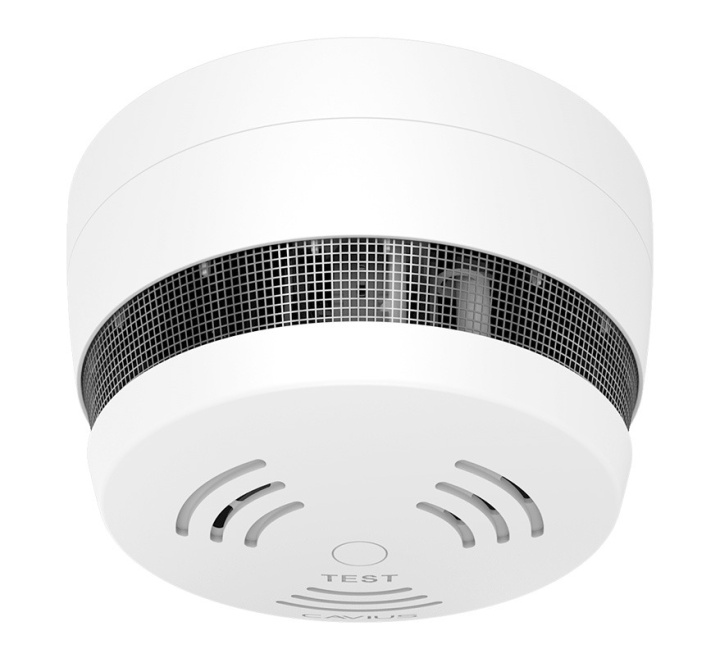

Cavius Mains Powered Radio-Interlink Optical Smoke Alarm with 10 Year Backup (CV2208)
SKU
CV2208
£83.94
£69.95
Cavius Mains Powered Radio-Interlink Optical Smoke Alarm with 10 Year Backup (CV2208)
- Buy 10 for £82.31 £68.59 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Cavius Mains Powered Radio-Interlink Optical Smoke Alarm with 10 Year Backup (CV2208)
The Cavius CV2208 is a mains-powered 97mm diameter optical smoke alarm in the Cavius family, with built-in RF connectivity. Can be interlinked with up to 31 other Cavius devices including RF smoke and heat alarms, Cavius relay and ancilliary devices.
Key Features of the CV2208 |
|---|
|
> Mains powered with wireless interlink and battery back-up
> Suitable for domestic use > Back up battery has 10 year life and is not replaceable > Set up / Hush / Test buttons > Dual mesh RF system > Ceiling mounting (screws, plugs, base included) > Dual insect screen to minimise nuisance alarms > Loud 85 decibel alarm at 3 metres > Certified to EN 14604:2005 + AC:2008 > 10-years manufacturer’s warranty |
| Brand | Cavius |
|---|---|
| Manufacturer Part No. | CV2208 |
| Warranty | 10 Years |
| Colour | White |
| Interlink Options | Radio-Interlink (RF) Only |
| Detectable Medium | Smoke |
| Sensor Type | Optical |
| Primary Power Source | Mains Powered (230V) |
| British Standard Grade (BS5839-6) | Grade D1 (Mains Powered with Sealed Back-up Battery) |
| Regional Compliances | 2022 Scottish Legislation Compliant, 2022 Welsh Legislation Compliant |
Write Your Own Review
FAQ’s for Cavius Mains Powered Radio-Interlink Optical Smoke Alarm with 10 Year Backup (CV2208)
No questions yet. Be the first to ask the question!
Product Specification for Cavius Mains Powered Radio-Interlink Optical Smoke Alarm with 10 Year Backup (CV2208)
| Code: | CV2208 |
| Description: | Kidde Cavius Mains powered smoke alarm device with wireless interlink and battery back-up |
| Dimensions: | D:97mm x H:52mm |
| Device type: | Mains powered smoke alarm device with wireless interlink and battery back-up |
| Operation AC/DC: | 230V AC |
| Battery type: | CR2 back up battery (non-replaceable) |
| Battery life: | Minimum 10 years life of back up battery (1 year without power supply) |
| Low battery indication: | A short acoustic “beep” will sound and LED flash every 48 seconds when the voltage is below 2.85V. In this stage it will continue for minimum 30 days, and can drive the alarm for 4 minutes. |
| Interlink frequency: | 868 MHz |
| Signals: | Transmits RF signals to the Cavius Wireless Family at alarm |
| Normal operation: | Red LED flashes every 48 seconds for normal operation. Green LED shows mains power on. |
| Interlink range: | Minimum 100m in open field. Range depends on the building materials and will need to be tested in each individual case. |
| Sound output level: | 85dB (A) @ 3m Fire alarm condition is indicated by a series of 3 successive tones |
| Visible indicators: | Red LED: Fire alarm - flashes every 0.5 seconds Smoke alarm - flashes every 2 seconds Normal operation - flashes every 48 seconds Green LED shows the alarm is powered by mains supply |
| Push button functions: | Set up - press to send out house code to other alarms Hush - During alarm condition this silences it for 10 mins Test - When not in alarm, press. Audible & visible indicators activate if the sensor is OK |
| Detection timing: | Smoke detector is reading every 8 seconds, every 2 seconds at unusual readings (alarm stage). |
| Mounting: | Ceiling - 2 x screws, 2 x plugs and ceiling base included |
| Operating temperature: | +4°C to +38°C |
| Humidity range: | Up to 90% RH (non-condensing) |
| Storage and transport: | -20°C to 60°C, up to 93% RH non-condensing |
| Certification/Approval: | EN 14604:2005+AC:2008 |
| Manufacturer's Warranty: | 10 years |
| Weight: | 200g (Excl. screws, plugs & mounting ring) |
