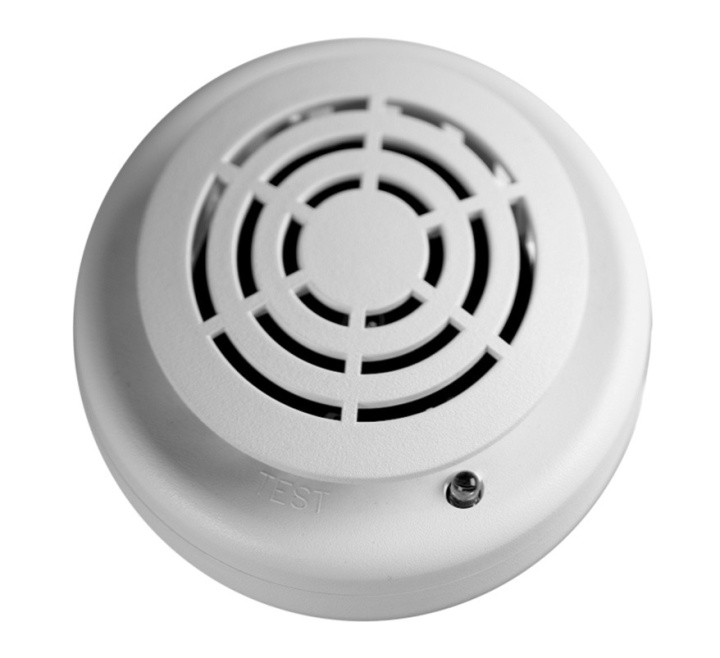

Aritech Dx700 Series Conventional High Temperature Heat Detector (DT713-7)
Product Details for Aritech Dx700 Series Conventional High Temperature Heat Detector (DT713-7)
The DT713-7 is a category B temperature detector with a fixed temperature threshold of 70°C and built in rate-or-rise functionality.
700 Series detectors continually monitor their own sensitivity and operational status. Once a day they perform a full diagnostic test that includes dynamically testing the internal electronics. Any abnormal statuses are signalled back to a compatible CIE.
Every 700 series base features a continuity link between LINE IN (1) and LINE OUT (2) terminals of the conventional detector circuit. The base is supplied with the link in closed position. The link is enabled by default allowing you to check the zone wiring using only the bases. The link will automatically disconnect when a detector is inserted, allowing the panel to generate a fault message when the detector is removed.
Key Features of the DT713-7 |
|---|
|
> Automatic self diagnostics: Dynamic full detector and sensitivity test
> High false alarm immunity > Built-in relay option > 12 - 24 VDC operation > Polarity insensitive > EN54 approved and CPR certified |
| Brand | Aritech |
|---|---|
| Manufacturer Part No. | DT713-7 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Warranty | 2 Years |
FAQ’s for Aritech Dx700 Series Conventional High Temperature Heat Detector (DT713-7)
Product Specification for Aritech Dx700 Series Conventional High Temperature Heat Detector (DT713-7)
| Product no.: | DT713-7 |
| Description: | Kidde ARITECH Dx700 Series conventional high temperature heat detector |
| Dimensions: | 100mm diameter x H:50mm |
| Status indication: | Red LED (alarm) |
| User interface: | LED |
| Compatibility: | Aritech conventional systems & Aritech and Excellence conventional ZMUs |
| Reset: | Voltage: <2.5V Time: 1s |
| Alarm levels: | 1 |
| Connectivity: | 2-wire zone & remote indicator |
| Power supply type: | Zone powered |
| Operating voltage: | 8.5 to 33 VDC |
| Current consumption: | 100 µA (quiescent at 24 VDC) <60 mA (in alarm at 24 VDC) |
| Detection: | Principle: Heat Sensitivity: Class B Zone length: Cable dependent Alarm temperature (typical): +70°C ± 1.5°C Rate-of-Rise: 8°C/min above 40°C |
| Vandal proof: | No |
| Operating temperature: | -10 to +65°C |
| Storage temperature: | -10 to +70°C |
| Application temperature: | Typical: +40°C Maximum: +65°C |
| Relative humidity: | 0 - 95% non-condensing |
| Environment: | Indoor |
| IP rating: | IP43 |
| Compliancy/Standards: | CE, REACH, RoHS 3, WEEE, CPR / EN54-5 |
| Compatible products: | DB702, DB702 U - Detection devices AI672, AI673 - Notification devices |
| Weight: | 85g |
