Aritech 2000 Series Addressable Multi-Tone Wall Sounder/VAD (White Body, Red Flash, Deep Base) (ASW2367W)
Product Details for Aritech 2000 Series Addressable Multi-Tone Wall Sounder/VAD (White Body, Red Flash, Deep Base) (ASW2367W)

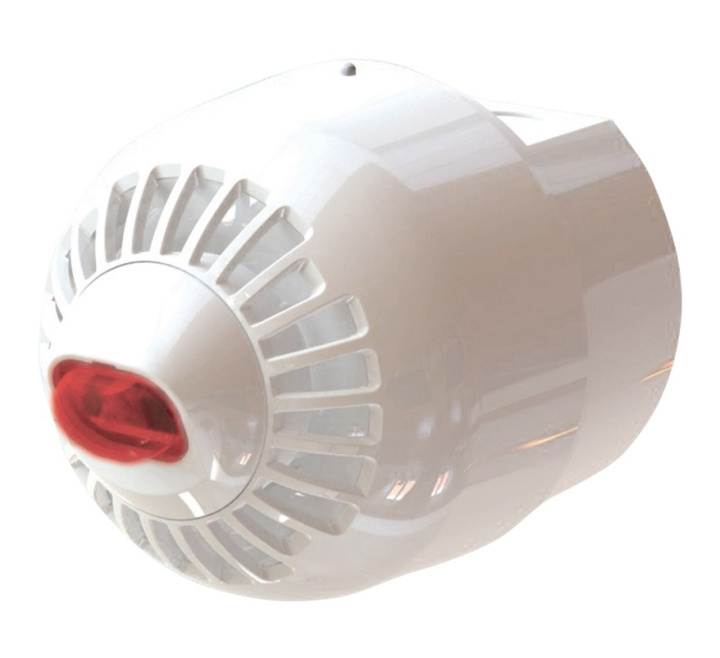

The ASW2367W is a WHITE bodied, deep base addressable wall mount room sounder/VAD for fire alarm systems running 2000 series fire protocol. Multiple tone selection and full CPR approval ensure conformance to local regulations. The VAD has a RED lens and a flash frequency of either 0.5 or 1 Hz (selectable on installation).
The 2000 series sounder/VADs operate over a 2-wire 2000 series loop and are loop powered i.e. no external power supply is required. The ASW2367W is compatible with automatic phased-start synchronisation controlled from the fire panel, and has a IP65 enclosure.
Installation
Device cabling is done to the base and allows the sounder to be fitted and locked into position afterwards. A separate earth terminal is provided in the base for connecting the screen or functional earth when required.
Efficient and versatile
These sounder/VADs can be put into different operating modes depending on local requirements. They provide high sound output at a low current, thus reducing power standby requirements and overall system cost. They are supplied with high/low volume settings as standard, allowing final audio adjustments to be made during installation. The sounder is tone selectable during installation. 32 tone settings are available.
The VAD flash rate can be set during installation to 1 Hz for normal applications or, for power conservation, to 0.5 Hz, reducing the power requirements of the unit.
Key Features of the ASW2367W |
|---|
|
> White
> Deep base > IP65 rated > Loop powered > High sound output with low current consumption > Multiple tone, output volume and varying flash frequency selection > Suitable for multiple stage evacuation with up to 3 pre-set tones > Automatic synchronisation for sounders and VADs > CPR certified to EN54:3 and EN54:23 |
| Brand | Aritech |
|---|---|
| Manufacturer Part No. | ASW2367W |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Aritech 2000 Series |
| Warranty | 2 Years |
FAQ’s for Aritech 2000 Series Addressable Multi-Tone Wall Sounder/VAD (White Body, Red Flash, Deep Base) (ASW2367W)
Product Specification for Aritech 2000 Series Addressable Multi-Tone Wall Sounder/VAD (White Body, Red Flash, Deep Base) (ASW2367W)
| Product no.: | ASW2367W |
| Description: | Kidde Aritech 2000 Series addressable wall mount sounder/visual alarm, multi-tone with deep base, White |
| Dimensions: | Dia:100mm x H:104mm |
| Compatible products: | Notification devices: AS36RIM, AS36RIM-09 |
| Compatibility: | Aritech 2000 Series systems |
| Switch on surge: | <1.2mA |
| Operating voltage: | 17 to 32 VDC |
| Current consumption: | 310 µA (Quiescent @ 24 VDC) 5.1 mA (Sounder ON @ 24 VDC) 20mA @ 0.5 Hz/40mA @ 1Hz (Beacon ON @ 24VDC) |
| Sounder: | Output level: 97 ±3dB(A) @ 1m @ 90º (tone/ voltage dependent) Output level adjustment: 8dB Frequency: 400 to 2850 Hz (tone and voltage dependent) Selectable tones: 32 Synchronisation: Automatic No. of stages: 3 |
| VAD: | Colour: Red Rating: W-3-7.49 Floor coverage: 56m² Flash frequency: 0.5 or 1Hz Synchronisation: Automatic |
| Colour/material: | White, High impact polycarbonate |
| Mounting: | Type: Wall Base: Deep Height: Up to 3m |
| Environment: | Vandal proof: No Operating & storage temperature: -10 to +55°C Relative humidity: 5 - 95% non-condensing |
| IP rating: | IP65, Outdoor |
| Regulatory: | CE, REACH, RoHS2, WEEE, EN54-23, EN54-3 |
| Weight: | 345g |
