Kidde 900 Series Protocol PAK USB Dongle (2010-2-PAK-900)
Product Details for Kidde 900 Series Protocol PAK USB Dongle (2010-2-PAK-900)

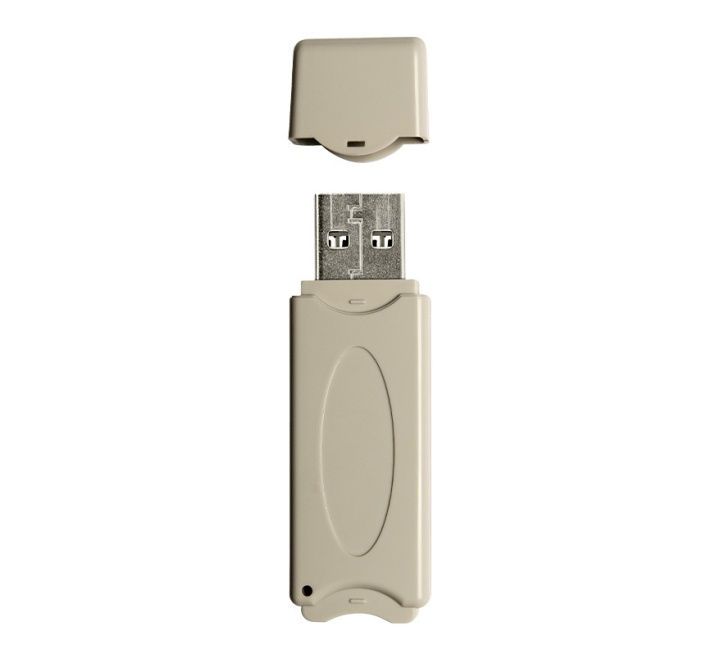

The Kidde 2010-2-PAK-900 enables the use of the 900 series protocol (Apollo) on compatible fire control panels.
The fire panel allows for its capabilities to be extended by use of USB dongles. These USB dongles are called PAK, which stands for Panel Activation Key. The use of the PAK will activate additional high-end feature(s) in the panel. Depending on the required functionality, separate and multiple PAKs can be used to enable these functionalities. Functionalities like number of nodes/loops, supported detector protocol, used TCP/IP communication protocol for remote monitoring, communication towards management software like BACNet or Modbus, etc, can be enabled by usage of the PAKs. The PAK is tied to the serial number of the panel, but does not have to stay connected to the panel. It can be removed once the PAK has been installed, and the feature is enabled in the panel. It is recommend that PAKs stay with the panel at all times, for example, in case of performing reset functions or re-installations.
Compatible Panels
- Ziton ZP2 and ZP2-A Series
- Kidde / Aritech 2X and 2X-A Series
- Ziton ZP2-F Series
- Aritech 2X-F Series
Key Features of the 2010-2-PAK-900 |
|---|
|
> Enables the 900 Series (Apollo) protocol
> Compatible with panel firmware 3.1 or higher > USB interface type 2.0 |
| Brand | Kidde Commercial |
|---|---|
| Manufacturer Part No. | 2010-2-PAK-900 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo XP95, Apollo Discovery |
| Warranty | 3 Years |
FAQ’s for Kidde 900 Series Protocol PAK USB Dongle (2010-2-PAK-900)
Product Specification for Kidde 900 Series Protocol PAK USB Dongle (2010-2-PAK-900)
| Product no.: | 2010-2-PAK-900 |
| Description: | Kidde 2010-2 PAK enables the 900 Series protocol |
| Dimensions: | W:22mm x H:70mm x D:5mm Form factor: Small |
| Mounting: | In cabinet |
| Operating temperature: | −5 to +40°C |
| Storage temperature: | −20 to +50°C |
| Relative humidity: | max. 95% non-condensing |
| Regulatory: | CPD, RoHS, WEEE, EN54-13, EN54-2 |
| Weight: | Shipping - 110g Net - 75g |
