Aritech 1200/2000 Series RS485 ARCNet Network Card (NC2011)
SKU
NC2011
£272.68
£227.23
Aritech 1200/2000 Series RS485 ARCNet Network Card (NC2011)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Aritech 1200/2000 Series RS485 ARCNet Network Card (NC2011)

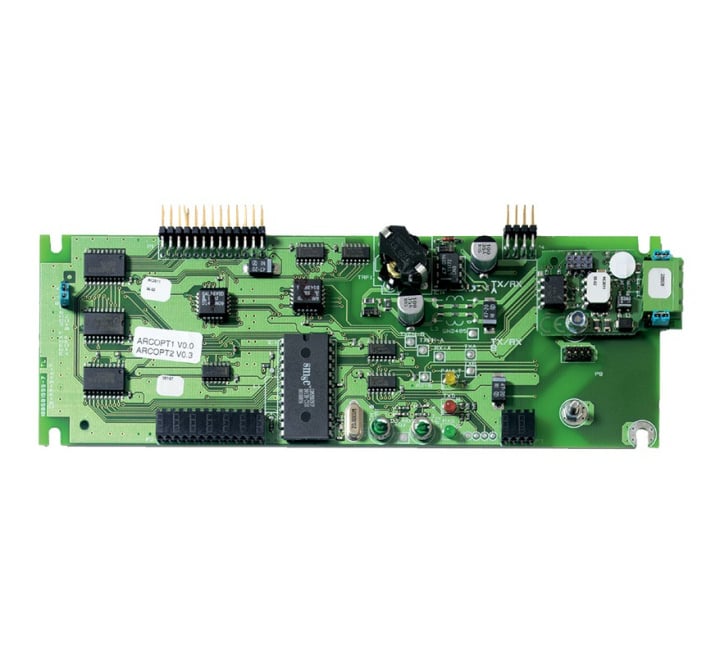

The NC2011 is an interface board to connect an RS485 copper network directly into the 1200/2000 series fire panels. It is supplied with one NE2011 pre installed.
Key Features of the NC2011 |
|---|
|
> Allows a RS485 interface on the FP1200/2000
> No configuration required > Supplied with nuts and washers for easy installation > Full Class-A ring option available with NE2011 > Mixed network support (copper and fibre) with NE2051 |
| Brand | Aritech |
|---|---|
| Manufacturer Part No. | NC2011 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Aritech 2000 Series |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Aritech 1200/2000 Series RS485 ARCNet Network Card (NC2011)
No questions yet. Be the first to ask the question!
Product Specification for Aritech 1200/2000 Series RS485 ARCNet Network Card (NC2011)
| Product no.: | NC2011 |
| Description: | Kidde 1200/2000 Series - Accessory - RS485 ARCNet Network Card |
| Dimensions: | 190mm x 64mm |
| Current consumption: | 50 mA |
| Form factor: | Medium |
| Operating temperature: | -10 to +50°C |
| Storage temperature: | -10 to +70°C |
| Relative humidity: | 10 to 95% |
| Certification: | EN54-2 |
| Weight: | 85g |
