Kentec Syncro View Repeater Panel - 24v (K67000M1)
Out of Stock
This item is currently out of stock and is not available to order
Product Details for Kentec Syncro View Repeater Panel - 24v (K67000M1)

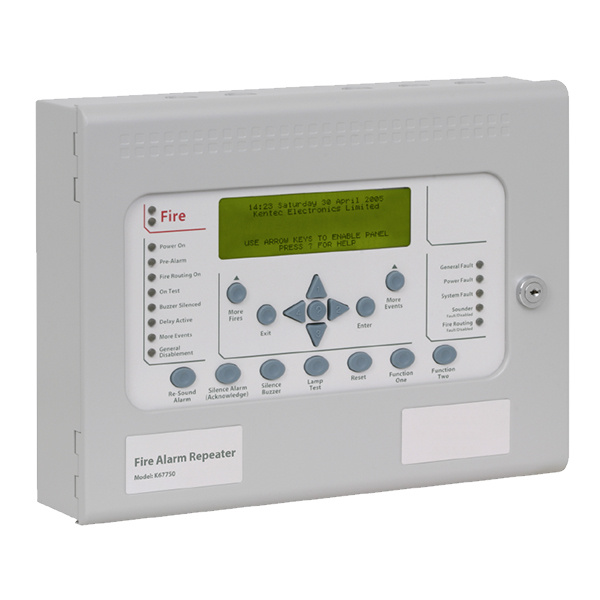

The Kentec K67000M1 Syncro View Repeater is a 24v DC powered repeater panel for use on addressable Syncro AS fire alarm systems. This panel can be powered via an additional 2 core cable from the Syncro AS control panel auxiliary 24v DC supply.
The Kentec Syncro View fire alarm repeater provides a cost effective, simple and convenient method of extending the controls and indications of the Syncro AS fire alarm control panel to other locations.
The large, graphic LCD, brightness LED indicators and full set of controls duplicate the indications and controls on the Syncro AS fire alarm control panel at up to 15 additional locations via a (separate to the Syncro AS network) simple, two-wire serial data connection.
Ideal for locations where a control and indication point smaller than a full fire alarm control panel is required.
Key Features of the K67000M1 |
|---|
|
> 24V DC powered
> Up to 15 annunciators can be connected to each Syncro AS fire control panel > Large liquid crystal display (240 x 64 pixels) > High brightness LED indications > Internal sounder > Replicates all Syncro panel controls > Simple, two-wire serial connection > Removable electronics for easy installation > Low power consumption > Multi-language options > Small enclosure > Connection monitored by Syncro AS fire control panel |
| Brand | Kentec Electronics |
|---|---|
| Manufacturer Part No. | K67000M1 |
FAQ’s for Kentec Syncro View Repeater Panel - 24v (K67000M1)
Product Specification for Kentec Syncro View Repeater Panel - 24v (K67000M1)
| Dimensions (mm) | 330 x 255 x 90 |
| Construction | 1.2mm mild sheet stee |
| IP Rating | IP30 |
| Finish | Epoxy powder coated |
| Colour - lid & box | BS 00 A 05 grey - fine texture |
| Colour - controls plate & labels | Ral 7047 light grey - satin |
| Weight | 4kg (standard panel) |
| Display | 8 lines of 40 characters graphic LCD |
| Cable entry | 5 x 20mm knockouts in top of box and 5 in rear |
| 24V supply (24V DC models only) | 21 to 30V DC |
| Maximum ripple current | 200 millivolts |
| Quiescent current of panel in mains fail | 0.03 Amps |
| Serial data connection | 2 core RS485 (Up to 1200 metres total cable length) |
| Maximum terminal capacity | 2.5mm² |
