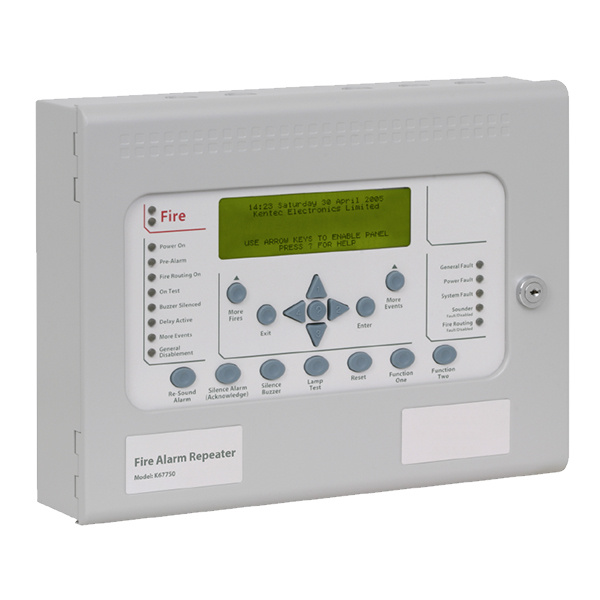

Kentec Syncro View Repeater Panel - 230v (K67750M1)
Out of Stock
This item is currently out of stock and is not available to order
Product Details for Kentec Syncro View Repeater Panel - 230v (K67750M1)
The Kentec K67750M1 Syncro View Repeater is a 230v AC powered repeater panel with an integral 750mA PSU. Designed for use on addressable Syncro AS fire alarm systems. This panel requires a 230v AC power source for the PSU and provides local battery back-up.
The Kentec Syncro View fire alarm repeater provides a cost effective, simple and convenient method of extending the controls and indications of the Syncro AS fire alarm control panel to other locations.
The large, graphic LCD, brightness LED indicators and full set of controls duplicate the indications and controls on the Syncro AS fire alarm control panel at up to 15 additional locations via a (separate to the Syncro AS network) simple, two-wire serial data connection.
Ideal for locations where a control and indication point smaller than a full fire alarm control panel is required.
Key Features of the K67750M1 |
|---|
|
> 230V AC powered
> Integral 750mA PSU with local battery back-up > Up to 15 annunciators can be connected to each Syncro AS fire control panel > Large liquid crystal display (240 x 64 pixels) > High brightness LED indications > Internal sounder > Replicates all Syncro panel controls > Simple, two-wire serial connection > Removable electronics for easy installation > Low power consumption > Multi-language options > Small enclosure > Connection monitored by Syncro AS fire control panel |
| Brand | Kentec Electronics |
|---|---|
| Manufacturer Part No. | K67750M1 |
FAQ’s for Kentec Syncro View Repeater Panel - 230v (K67750M1)
Product Specification for Kentec Syncro View Repeater Panel - 230v (K67750M1)
| Dimensions (mm) | 330 x 255 x 90 |
| Construction | 1.2mm mild sheet stee |
| IP Rating | IP30 |
| Finish | Epoxy powder coated |
| Colour - lid & box | BS 00 A 05 grey - fine texture |
| Colour - controls plate & labels | Ral 7047 light grey - satin |
| Weight | 4kg (standard panel) |
| Display | 8 lines of 40 characters graphic LCD |
| Cable entry | 5 x 20mm knockouts in top of box and 5 in rear |
| Mains supply (Mains models only) | 230V AC +10% - 15% (20 Watts maximum) |
| Mains supply fuse | 2 Amp, 20mm |
| Power supply rating | 28V 750mA total (including battery charging) |
| Maximum ripple current | 200 millivolts |
| Battery type (Yuasa NP) | Two 12 Volt 1.9Ah sealed lead acid in series |
| Battery charge voltage | 27.6VDC nominal |
| Battery charge current | 200mA maximum |
| Battery fuse | 200mA, 20mm, glass |
| Maximum current draw from batteries | 95mA |
| Quiescent current of panel in mains fail | 0.03 Amps |
| Serial data connection | 2 core RS485 (Up to 1200 metres total cable length) |
| Maximum terminal capacity | 2.5mm² |
