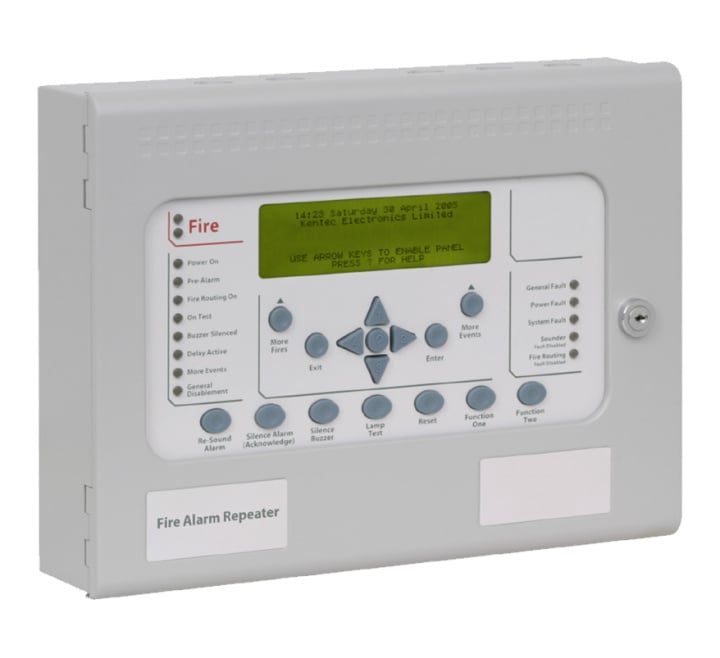

Kentec Syncro View Marine Approved Local LCD Repeater Panel with Keyswitch 24v (MK67001M1)
Out of Stock
This item is currently out of stock and is not available to order
Product Details for Kentec Syncro View Marine Approved Local LCD Repeater Panel with Keyswitch 24v (MK67001M1)
The Kentec Syncro View Marine (MK67001M1) fire alarm annunciator provides a simple and convenient method of extending the controls and indications of the Syncro ASM fire alarm control panel to other locations.
The large, graphic liquid crystal display and high-brightness LED indicators duplicate the indications on the Syncro ASM fire alarm control panel at up to 15 additional locations via a simple, two-wire serial data connection.
The Syncro View Marine is available in either a 24V DC-powered option (which can be powered via an additional 2 cores from the Syncro ASM control panel, a maximum of 4 View Marine repeater panels in this combination) or up to 15 View Marine repeater panels if powered local from an ancillary 24V DC supply or a 230V powered option with local battery back up.
Syncro View Marine is housed in a small enclosure which is styled similarly to the Syncro ASM control panel and is ideal for installations where a large fire control panel would be detrimental to décor or where space is at a premium such as the Control Bridge or Helm.
Up to 15 Syncro View Marine annunciators can be connected to each control panel on the Syncro ASM network making View Marine ideal where multiple points of indication and/or control are required in such as places as engine rooms, staff quarters, living spaces or control area’s.
Key Features of the MK67001M1 |
|---|
|
> Up to 15 annunciators can be connected to each Syncro ASM fire control panel
> Large liquid crystal display (240 x 64 pixels) > High brightness LED indications > Internal sounder > Replicates all Syncro ASM panel controls > Simple, two-wire serial connection > Small, Syncro style enclosure > Removable electronics for easy installation |
| Brand | Kentec Electronics |
|---|---|
| Manufacturer Part No. | MK67001M1 |
FAQ’s for Kentec Syncro View Marine Approved Local LCD Repeater Panel with Keyswitch 24v (MK67001M1)
Product Specification for Kentec Syncro View Marine Approved Local LCD Repeater Panel with Keyswitch 24v (MK67001M1)
| Construction | 1.2mm mild sheet steel |
| IP Rating | IP30 |
| Finish | Epoxy powder coated |
| Colour - lid & box | BS 00 A 05 grey - fine texture |
| Colour - controls plate & labels | RAL 7047 light grey - satin |
| Display | 8 lines of 40 characters graphic LCD |
| Cable entry | 5 x 20mm knockouts in top of box and 5 in rear |
| Mains supply (Mains models only) | 230V AC +10% - 15% (20 Watts maximum) |
| 24V supply (24V DC models only) | 21 to 30V DC |
| Mains supply fuse | 2 Amp, 20mm |
| Power supply rating | 28V 750mA total (including battery charging) |
| Maximum ripple current | 200 millivolts |
| Battery type (Yuasa NP) | Two 12 Volt 1.9Ah sealed lead acid in series |
| Battery charge voltage | 27.6VDC nominal |
| Battery charge current | 200mA maximum |
| Battery fuse | 200mA, 20mm, glass |
| Maximum current draw from batteries | 95mA |
| Quiescent current of panel in mains fail | 0.03 Amps |
| Serial data connection | 2 core RS485 (Up to 1200 metres total cable length) |
| Maximum terminal capacity | 2.5mm² |
