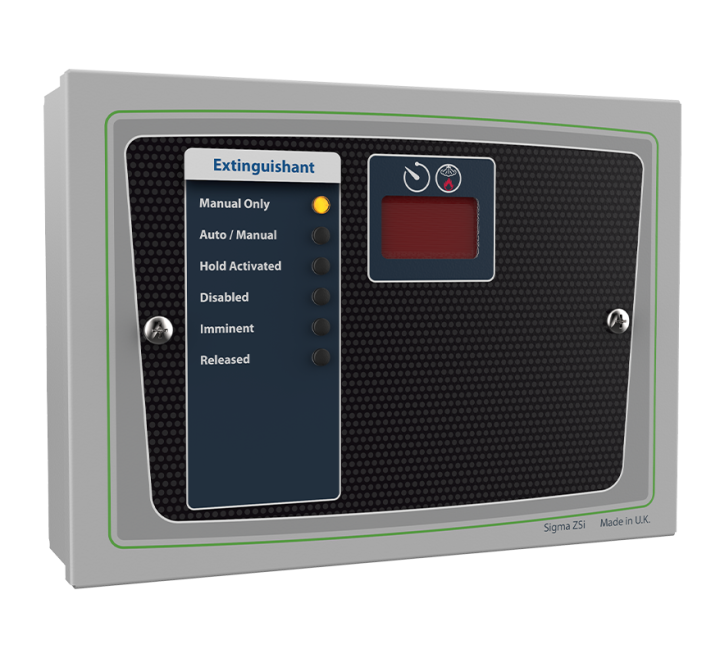

Kentec Sigma ZSi - 6 LED Extinguishant Status Unit (K921000M8)
SKU
K921000M8
£121.40 £101.17
Kentec Sigma ZSi - 6 LED Extinguishant Status Unit (K921000M8)
The Kentec K921000M8 Sigma ZSi - 6 LED Extinguishant Status Unit extends the indications of the Sigma ZXT Extinguishant Control Panel to other locations within the fire protection system. They can be introduced to make operation of the system more practical, within areas that have multiple access points (or doors).
All units connect to a two wire data communications bus and are powered by the Auxiliary 24V DC output of compatible, extinguishant Control Panels.
A maximum of 7 status units may be connected to each control panel extinguishant area.
| Key Features |
|---|
| > Sigma ZSi - 6 LED status indicators > Extinguishing release countdown display > RS485 connection to extinguishing panel > Maximum 7 units per panel > Supply voltage 21 - 30V DC > Serial connection - max 7 Si per extinguishing area > Status LEDs - Manual Only, Auto/Manual, Hold Operated, Disabled, Imminent & released > 7 Segment LED display > Auto/Manual doorlock input > Remote Hold input > Max current draw 0.07A > Surface mount M8 enclosure > W:190mm x H:136mm x D:50mm > Backward compatible with Sigma XT/XT+, Syncro XT+ > Compliant with EN12094-1 |
| Manufacturer | Kentec Electronics |
|---|---|
| MPN | K921000M8 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Product Code: | K921000M8 |
| Description: | 6 lamp status unit |
| Product Dimensions: | W:190mm x H:136mm x D:50mm Surface mount, M8 enclosure |
| Construction: | 1.2mm mild sheet steel |
| IP Rating: | IP30 |
| Finish: | Epoxy powder coated |
| Colour: | lid & box BS 00 A 05 grey - fine texture |
| Weight: | 1kg |
| Power supply: | 21 - 30V DC |
| Max. current draw: | 70mA |
| Quiescent consumption: | 33mA |
| Max. no. of status units: | 7 |
| Max. no. of ancillary boards: | 8 |
| Monitored inputs EOL resistor: | 6K8 0.5W Resistor fitted to terminals |
| Monitored inputs normal threshold: | 8K ohm to 1K ohm |
| Monitored inputs trigger threshold: | 700 ohms to 100 ohms |
| Monitored inputs short circuit threshold: | 99 ohms to 0 ohms |
| Data connection: | 2-wire RS485 connection (max 1200m) |
