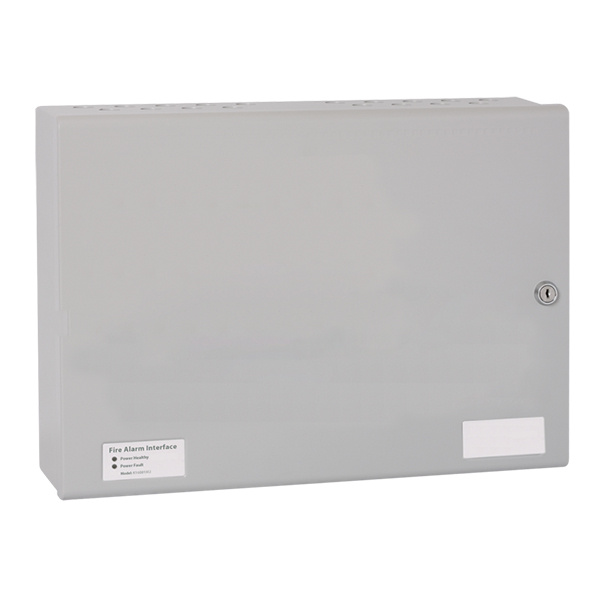

Kentec Sigma XT Ancillary PCB c/w Integral 0.75A PSU, Boxed, Surface Mount, M2 Enclosure (K03750M2)
SKU
K03750M2
£295.61 £246.34
Kentec K03750M2 Sigma XT Ancillary PCB with integral 0.75A PSU. Boxed, surface mount, M2 enclosure
The Kentec K03750M2 Sigma XT is a boxed Extinguishant Ancillary PCB with integral 0.75A PSU. It provides volt free relay outputs for fire and extinguishing system status. Surface mount, M2 enclosure.
The Sigma XT Ancillary Board is compatible with all Sigma XT control panels which have operating software version SIGXT_11A.HEX or above.
The board provides volt free normally open contacts allowing control of subsystems and plant remotely from the main panel over a two wire data bus.
Mains powered, boxed Ancillary boards require only a two core data cable from the main control panel. 24V DC versions require an additional two cores for power either from the main panel or from another 24V DC source.
Up to 7 Ancillary boards can be connected to a control panel and each is allocated an address from 1 to 7 using a binary coded DIL switch. The total length of the data cable from the main panel to the last repeater must not exceed 1200 metres.
A mixture of status units and Ancillary boards, up to a maximum of 7 of each type, can be connected to the serial data bus.
| Key Features |
|---|
| > Boxed with integral 0.75A PSU 230V AC input > Extinguishant Ancillary PCB > Serial communication with panel > 2-wire serial connection > Up to 7 ancillary boards supported on a single panel per system > Expansion board for Sigma extinguishing panels > 230V AC powered > Volt free relay outputs for fire and extinguishing system status > Relay operated LED indicators > Compatible with all Sigma XT control panels with operating software SIGXT_11A.HEX or above > Requires 20-30V DC supply > 10 x 1A @ 30V DC relay outputs - Z1 Fire, Z2 Fire, Z3 Fire, Man Mode, Disable, Release, Activated, Hold, Extract, Manual Release > Surface mount M2 enclosure, box size W:385mm x H:310mm x D:90mm |
| Manufacturer | Kentec Electronics |
|---|---|
| MPN | K03750M2 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Product Code: | K03750M2 |
| Product Dimensions: | W:385mm x H:310mm x D:90mm |
| Construction: | 1.2mm mild sheet steel |
| IP Rating: | IP30 |
| Finish: | Epoxy powder coated |
| Colour: | lid & box BS 00 A 05 grey - fine texture |
| Weight: | 1kg |
| Supply voltage: | 230V AC +10-15% |
| Mains supply fuse: | 1.6A 250V |
| Power supply DC rating: | 24V 0.75A |
| Maximum battery size: | 2Ah 24V (2 per panel) |
| Contact ratings: | 30V DC 1A |
| Cable capacity: | 2.5mm2 per terminal |
| Operating temperature: | -5oC to +50oC <95% humidity (non condensing) |
