Kentec Sigma Si Extinguishant Hold Off Unit - Green Button (K91000M10)
Out of Stock
This item is currently out of stock and is not available to order
Product Details for Kentec Sigma Si Extinguishant Hold Off Unit - Green Button (K91000M10)

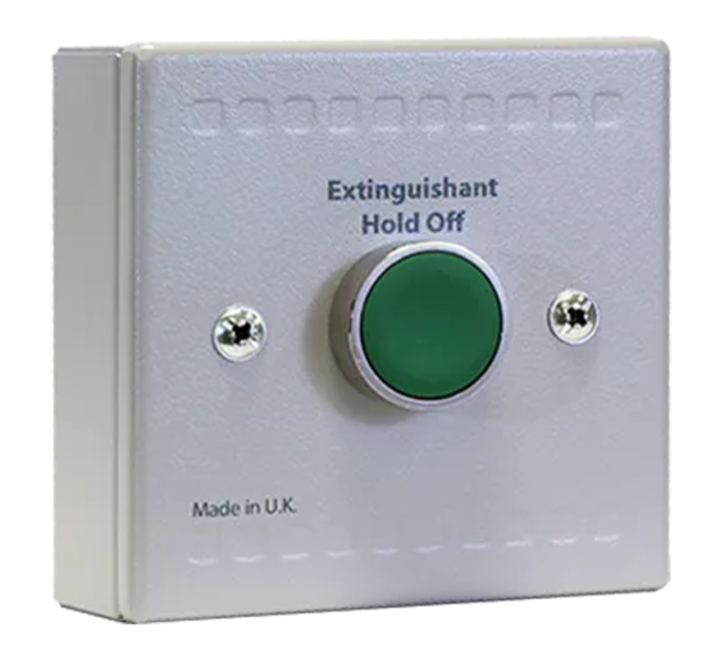

The Kentec K91000M10 Sigma Si Extinguishant Hold Off Unit has a green push-button to temporarily hold off the release of extinguishant gas.
Sigma Si Hold off units are available with red or green actuators (BS 7273-1 recommends white with red button) and are mounted in a single gang, surface mounting enclosure. For flush mounting, the enclosure may be discarded, and the unit mounted to a standard UK single gang electrical back box.
The unit has a durable, shrouded push button to prevent accidental operation, and a simple two-wire connection to Sigma XT, Sigma XT+, Syncro XT+ or Sigma Si status units is required. Sigma Si Hold off units are fitted with normally open and normally closed contacts to allow operation with monitored and unmonitored systems.
Key Features of the K91000M10 |
|---|
|
> Push-button used to temporarily hold off the release of extinguishant gas
> Green shrouded non-latching push-button > Two-wire connection to Sigma XT, Sigma XT+, Syncro XT+ or Sigma Si status units is required > 1 x Normally Open input > 1 Normally Closed input > IP30 rated > For flush mounting, the enclosure may be discarded and the unit mounted to a standard UK single gang electrical back box > Surface mount M10 mild steel enclosure > W:102mm x H:102mm x D:50mm |
| Brand | Kentec Electronics |
|---|---|
| Manufacturer Part No. | K91000M10 |
FAQ’s for Kentec Sigma Si Extinguishant Hold Off Unit - Green Button (K91000M10)
Product Specification for Kentec Sigma Si Extinguishant Hold Off Unit - Green Button (K91000M10)
| Product Code: | K91000M10 |
| Description: | Extinguishant Hold Off Switch Unit - Green button |
| Product Dimensions: | W:102mm x H:102mm x D:50mm Surface mount or flush mount |
| Construction: | 1.2mm mild sheet steel |
| IP Rating: | IP30 |
| Finish: | Epoxy powder coated |
| Colour: | lid & box BS 00 A 05 grey - fine texture |
| Weight: |
1kg |
| Contacts: | 1 x Normally Open 1 x Normally Closed |
| Operating temperature: |
-5oC to +40oC |
| Knockouts: | 20mm |
| Trigger Resistor: |
470R 1Watt |
