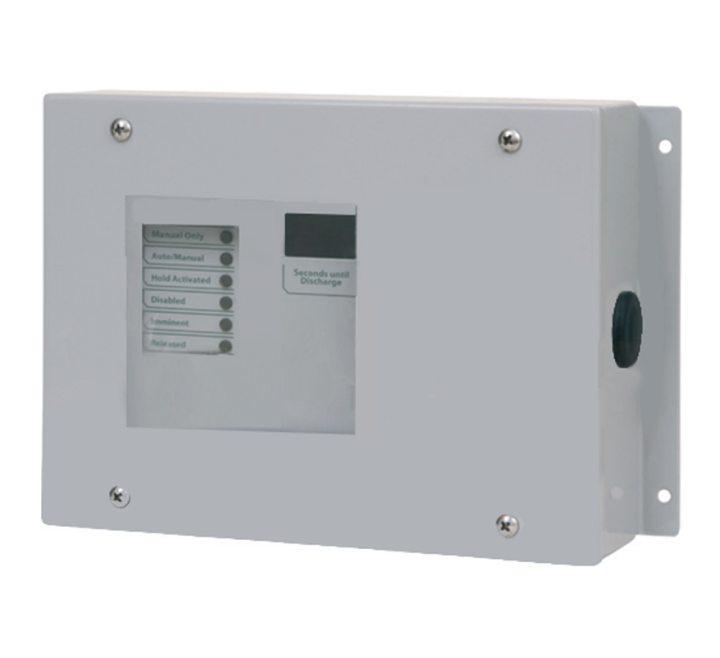

Kentec Sigma Si - 6 LED Weatherproof Extinguishant Status Unit (W911000W8)
Out of Stock
This item is currently out of stock and is not available to order
Product Details for Kentec Sigma Si - 6 LED Weatherproof Extinguishant Status Unit (W911000W8)
The Kentec W911000W8 Sigma Si - 6 LED Extinguishant Status Unit extends the indications of the Sigma XT Extinguishant Control Panel to other locations within the fire protection system. This variant is weatherproof with an IP65 rating.
A maximum of 7 status units may be connected to each control panel extinguishant area.
The Sigma Si range of status indicators provides detailed status information for Sigma XT and Sigma XT+ extinguishant release control equipment. All models provide high brightness, LED indication of Manual Only, Automatic and Manual, Hold Operated, Disabled, Imminent and Released conditions. Sigma Si 10 lamp version also has zonal fire indicators and a common fault indicator.
For systems where local control of the Automatic/Manual mode and or a Manual extinguishant release control are required, units are available with these controls fitted.
All models have monitored inputs for the remote connection of Automatic/Manual mode and Hold switches and are provided with a large, LED display which shows a countdown of the time remaining until the extinguishant is released in seconds.
Key Features of the W911000W8 |
|---|
|
> Sigma Si - 6 LED Weatherproof Extinguishant Status Unit
> High brightness LEDs > Monitored data connection > Compliant with EN12094-1 > Serial connection - max 7 Si per extinguishing area > Status LEDs - Manual Only, Auto/Manual, Hold Operated, Disabled, Imminent & released > 7 Segment LED display > Auto/Manual doorlock input > Remote Hold input > Requires 21-30V DC supply > IP65 > Surface mount IP65 S8 enclosure W:256mm x H:170mm x D:60mm |
| Brand | Kentec Electronics |
|---|---|
| Manufacturer Part No. | W911000W8 |
FAQ’s for Kentec Sigma Si - 6 LED Weatherproof Extinguishant Status Unit (W911000W8)
Product Specification for Kentec Sigma Si - 6 LED Weatherproof Extinguishant Status Unit (W911000W8)
| Product Code: | W911000W8 |
| Description: | 6 lamp status unit |
| Product Dimensions: | W:256mm x H:170mm x D:60mm Surface mount, IP65 S8 enclosure |
| Construction: | 1.2mm mild sheet steel |
| IP Rating: | IP65 |
| Finish: | Epoxy powder coated |
| Colour: | lid & box BS 00 A 05 grey - fine texture |
| Weight: |
1kg |
| Power supply: | 21 - 30V DC |
| Max. current draw: |
0.07A |
| Max. no. of status units: | 7 |
| Power supply DC rating: | 24V 0.75A |
| Quiescent current: | 0.033A |
| Cable capacity: |
2.5mm2 per terminal |
| Monitored inputs EOL resistor: | 6K8 0.5W Resistor |
| Monitored inputs normal threshold: | 8K ohm to 1K ohm |
| Monitored inputs trigger threshold: | 700 ohms to 100 ohms |
| Monitored inputs: |
99 ohms to 0 ohms |
| Short circuit threshold data connection: |
2-wire RS485 connection (max 1200m) |
| Operating temperature: |
-15oC to +35oC |
