Kentec Sigma CP Sounder Controller PCB 24v - Stand Alone (K461)
Out of Stock
This item is currently out of stock and is not available to order
Product Details for Kentec Sigma CP Sounder Controller PCB 24v - Stand Alone (K461)

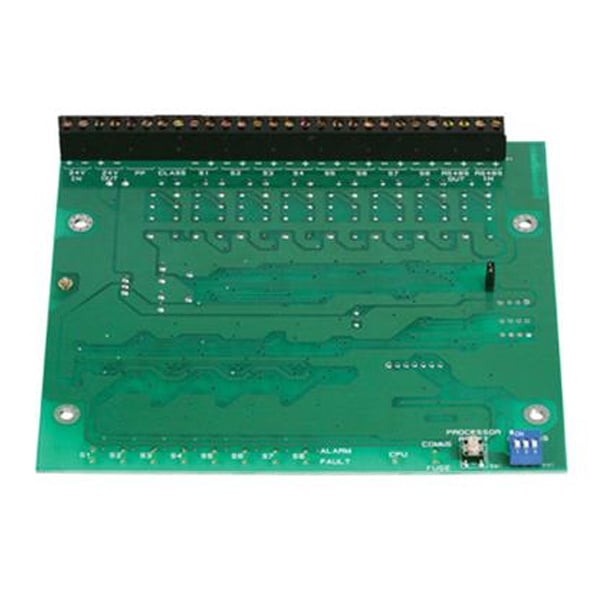

The Sigma K461 is a stand-alone sounder controller PCB which requires a 24v DC power source.
The Kentec Sigma CP Sounder Board is compatible with all Sigma CP control panels which have operating software version V3.0 or above.
The board provides 8 additional sounder outputs which can be configured as zoned, 2-stage or common alarm.
All sounder outputs are open and short circuit monitored and any faults on the sounder outputs will be announced at the main fire alarm panel as a sounder fault.
A class change input is provided which, when activated by a volt free contact closing, will switch all sounder outputs on.
24V DC versions require an additional two cores from another 24V DC source which is suitably rated to supply the total sounder current.
Up to 7 Sounder boards can be connected to a control panel and each is allocated an address from 1 to 7 using a binary coded DIL switch. Sounder boards may be connected to the Sigma CP serial bus in addition to Sigma CP ancillary boards and Sigma CP-R repeater panels.
The total length of the data cable from the main panel to the last repeater must not exceed 1200 metres. Once Sounder boards have been recognised by the main panel, a fault will be announced at the main panel if any become disconnected.
Key Features of the K461 |
|---|
|
> Two wire serial connection
> Up to 7 sounder boards per system > 24V DC powered - no enclosure or PSU provided > Zoned, 2-stage or common alarm > All outputs monitored for open and short circuit faults > Individual open and short circuit fault indicators > Fully monitored by main control panel > Class change input facility > Up to 8 outputs with 1A available from each > Can be connected to serial bus with Ancillary boards and repeaters > Power fault input for monitoring remote power supplies |
| Brand | Kentec Electronics |
|---|---|
| Manufacturer Part No. | K461 |
FAQ’s for Kentec Sigma CP Sounder Controller PCB 24v - Stand Alone (K461)
Product Specification for Kentec Sigma CP Sounder Controller PCB 24v - Stand Alone (K461)
| Weight (kg) | 1 |
| Dimensions (mm) | 155 x 136 |
| Supply Voltage (K04000M2) | 20-30V DC |
| Mains supply fuse | 1.6A 250V |
| Power supply DC rating | 24V 5.25 Amp |
| Sounder output rating | 1A per output |
| Class change input | Volt free NOC |
| Cable capacity | 2.5mm² per terminal |
| Operating temperature | -5°C to +50°C |
| Operating humidity | <95% (non condensing) |
