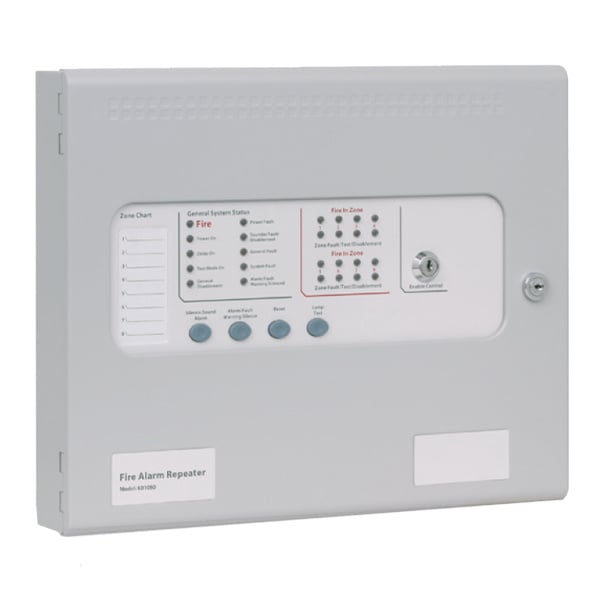

Kentec Sigma CP-R 8 Zone Repeater Panel - 24v (E01080L2)
Out of Stock
This item is currently out of stock and is not available to order
Product Details for Kentec Sigma CP-R 8 Zone Repeater Panel - 24v (E01080L2)
The Kentec Sigma CP-R E01080L2 is an 8 zone repeater fire panel that is compatible with all Kentec Sigma CP control panels which have operating software version V2.0 or above.
This repeater panel is 24v DC powered so it requires a two core cable for power either from the main panel or from another 24v DC source, an additional two core data cable is required from the main control panel for communication on the system.
A mixture of repeaters, ancillary boards or sounder boards up to a maximum of 7 of each type can be connected to a control panel and each is allocated an address from 1 to 7 using a binary coded DIL switch. The total length of the data cable from the main panel to the last repeater panel must not exceed 1200 metres.
Key Features of the E01080L2 |
|---|
|
> Two-wire serial connection
> Up to 7 panels per system > 24v DC powered > Full control over main panel > Volt free fire and fault contact outputs |
| Brand | Kentec Electronics |
|---|---|
| Manufacturer Part No. | E01080L2 |
FAQ’s for Kentec Sigma CP-R 8 Zone Repeater Panel - 24v (E01080L2)
Product Specification for Kentec Sigma CP-R 8 Zone Repeater Panel - 24v (E01080L2)
| Construction | 1.2mm mild sheet steel |
| IP Rating | IP30 |
| Finish | Epoxy powder coated |
| Colour - lid & box | BS 00 A 05 grey - fine texture |
| Colour - control panel & labels | RAL 7047 light grey - satin |
| Dimensions | 385mm x 310mm x 60mm |
| Weight | 6kg |
| Supply Voltage (E models) | 20-30V AC |
| Mains Supply Fuse | 1.6A 250V |
| Power Supply DC rating | 24V 1 Amp |
| Maximum battery size | 7aH 12V (2 per panel) |
| Fault contact rating | 30V DC 1 Amp |
| Fire contact rating | 30V DC 1 Amp |
| Cable capacity | 2.5mm² per terminal |
| Operating temperature | -5°C to +40°C |
| Operating humidity | <95% (non condensing) |
