Kentec Sigma CP Ancillary PCB (K580)
Product Details for Kentec Sigma CP Ancillary PCB (K580)

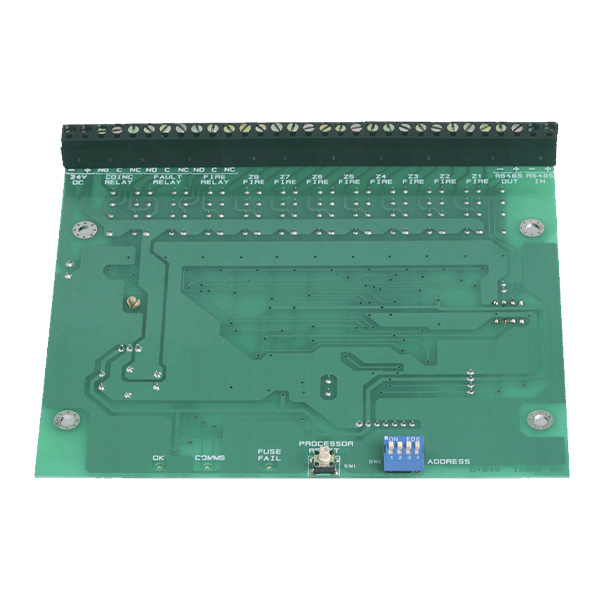

The Kentec K580 is an ancillary PCB without an enclosure and requires a 24v DC power source.
The Sigma Ancillary Board is compatible with all Sigma CP and CP-R panels which have operating software version V2.0 or above.
The board provides common fire, common fault, coincidence and zonal fire, volt free contacts allowing control of sub-systems, graphical mimics and plant, remotely from the main panel over a two wire data bus.
Mains powered Ancillary boards require only a two core data cable from the main control panel. 24V DC versions require an additional two cores for power either from the main panel or from another 24V DC source.
A mixture of Ancillary boards, Sounder boards or Repeaters up to a maximum of 7 of each type can be connected to a control panel and each is allocated an address from 1 to 7 using a binary coded DIL switch. The total length of the data cable from the main panel to the last repeater must not exceed 1200 metres.
Key Features of the K580 |
|---|
|
> Two wire serial connection
> Up to 7 boards per system > 24v DC powered - no enclosure > Open collector zonal fault outputs > Volt free fire, coincidence and common fault contact outputs |
| Brand | Kentec Electronics |
|---|---|
| Manufacturer Part No. | K580 |
FAQ’s for Kentec Sigma CP Ancillary PCB (K580)
Product Specification for Kentec Sigma CP Ancillary PCB (K580)
| Weight (kg) | 1 |
| Supply Voltage | 20-30V DC |
| Mains supply fuse | 1.6A 250V |
| Power supply DC rating | 24V 750mA |
| Maximum battery size | 2.6aH 12V (2 per panel) |
| Standby current | 20mA |
| Full alarm current | 190mA |
| Fault contact rating | 30V DC1 Amp |
| Fire contact rating | 30V DC1 Amp |
| Coincidence contact rating | 30V DC1 Amp |
| Zonal contact rating | 30V DC1 Amp |
| Cable capacity | 2.5mm² per terminal |
| Operating temperature | -5°C to +50°C |
| Operating humidity | <95% (non condensing) |
