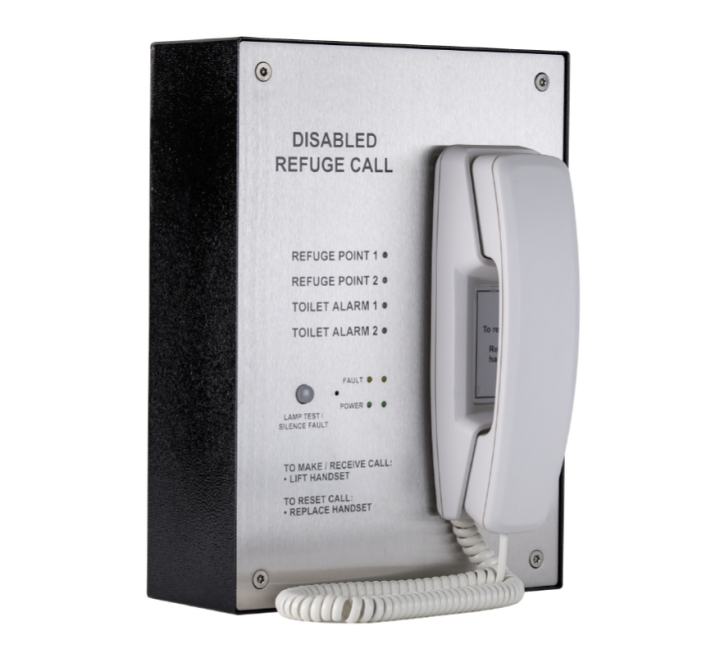

Kentec Safe-Point 2-Way Disabled Refuge Control Panel - Radial Wired - Surface Mounting (K41102SST)

The Kentec K41102SST combined master panel provides inputs for Safe-Point call/answer outstations. Using the integrated handset, the master panel can call out to the disabled refuge outstations and once connected allow a duplex voice conversation to take place.

Accompanying LED indicators and an internal buzzer notify of any disabled refuse alarms raised. A fascia located momentary push-button provides lamp-test and buzzer silence functionality. Added LED’s provide power health and system fault indications.

Disabled refuge outstations are connected directly to the unit using 2 core 1.5mm enhanced fired rated cable (not supplied). A Toilet alarm kit can be wired directly or in-line with an accompanying disable refuge call/answer points.

Space for 3.2Ah batteries is provided within the cabinet, these will provide 24 + 3 hours standby as specified by BS5839 Part 9. The unit is available in a surface mount enclosure, comprising a mild steel back box with stainless steel fascia plate.
