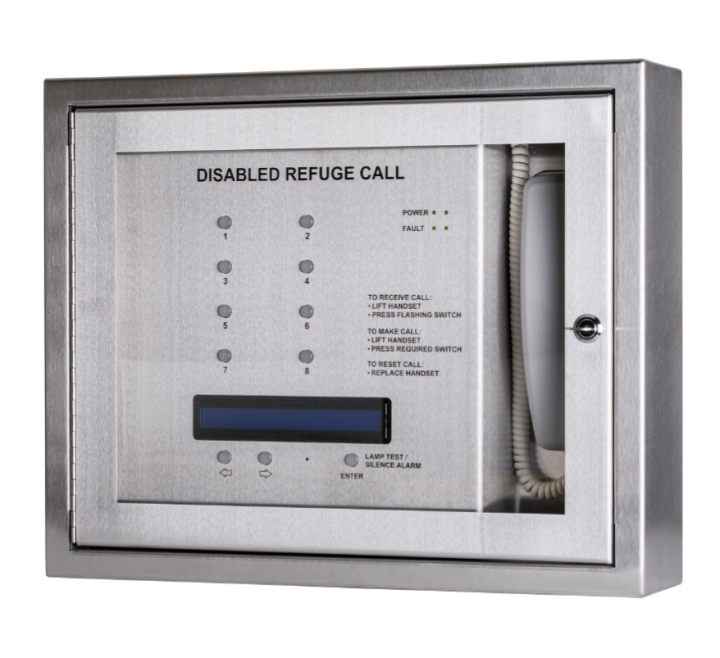

Kentec Safe-Point 8-Way Disabled Refuge Control Panel - Radial Wired - Surface Mounting (K41108SST)

The Kentec K41108SST Safe-Point 8-way Disabled Refuge Control Panel has 8 call/answer outstation inputs and a simple handset to operate. Surface mounted. Radial wired.

The master panel can answer or call out to each, multiple or all of the Safe-Point disabled refuge outstations by activating the corresponding fascia push-buttons. Once connected full duplex conversations can take place and calls are ended by simply replacing the integrated handset.

Accompanying LED indicators and an internal buzzer notify of any disabled refuse alarms raised. A fascia located momentary push-button provides lamp-test and buzzer silence functionality. Added LED’s provide power health and system fault indications.

The unit is available in two installation versions allowing wiring to disabled refuge outstations to be made either radially, or over a loop. Any toilet alarm kit can be wired inline with an accompanying disable refuge call/answer point.

Space for 7Ah batteries is provided within the cabinet, these will provide 24 + 3 hours standby as specified by BS5839 Part 9. The unit is available in surface or flush mount enclosure options, comprising a mild steel back box with stainless steel fascia plate, including a tamper-resistant vision window cover.
