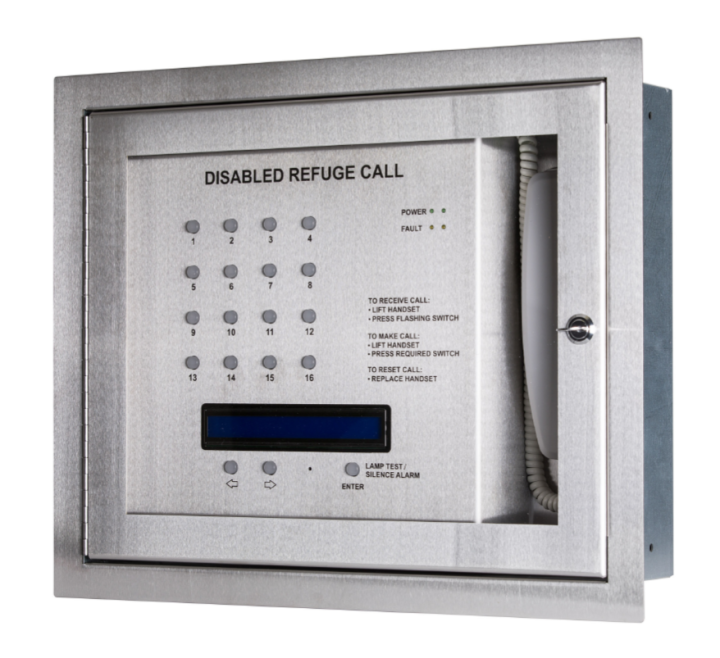

Kentec Safe-Point 16-Way Disabled Refuge Control Panel - Loop Wired - Flush Mounting (K41216FST)

The Kentec K41216FST Safe-Point is a 16-line central unit with an OLED display. Flush mounted enclosure comprising a mild steel back box with stainless steel fascia plate and tamper-resistant window cover. There is space for 7Ah batteries within the enclosure.

Outstations are wired to the refuge master panel in a loop configuration which reduces costs and time.

The master panel can answer or call out to each, multiple or all of the Safe-Point disabled refuge outstations by activating the corresponding fascia push-buttons. Once connected full duplex conversations can take place and calls are ended by simply replacing the integrated handset.

Accompanying LED indicators and an internal buzzer notify of any disabled refuse alarms raised. A fascia located momentary push-button provides lamp-test and buzzer silence functionality. Added LED’s provide power health and system fault indications.

Outstations are wired to the refuge master panel in a loop configuration reducing installation time and costs. Any toilet alarm kit can be wired in-line with an accompanying disable refuge call/answer point.

Space for 7Ah batteries is provided within the cabinet, these will provide 24 + 3 hours standby as specified by BS5839 Part 9. The unit is available in surface or flush mount enclosure options, comprising a mild steel back box with stainless steel fascia plate, including a tamper-resistant vision window cover.
