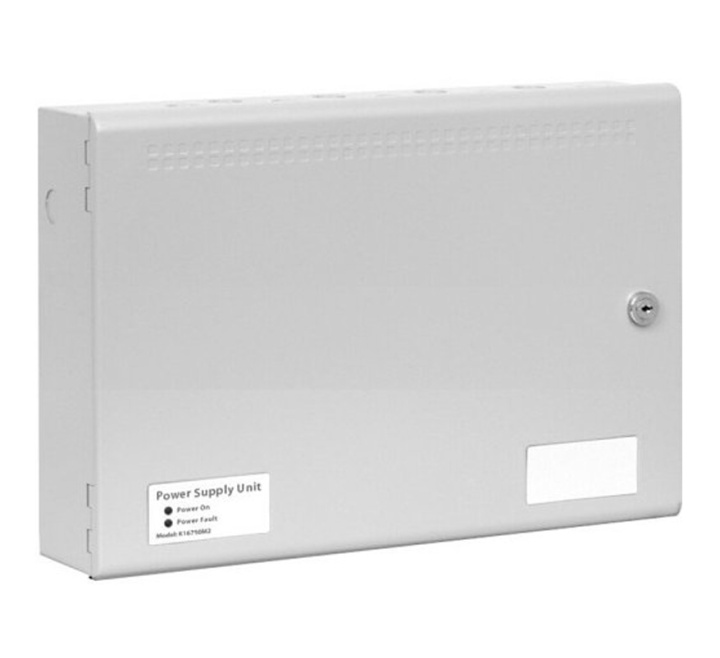

Kentec 5.25 Amp Power Supply (Boxed) Syncro Styling - Max 17Ah Batteries (K2540003)
SKU
K2540003
£386.62 £322.18
Kentec 5.25 Amp Power Supply (Boxed) Syncro Styling - Max 17Ah Batteries (K2540003)
Kentec 5.25 Amp Power Supply (Boxed) Syncro Styling - Max 17Ah Batteries (K2540003)
Kentec Syncro Power fully certified to EN54-4 power supplies provide a stable and fully regulated, true 24V output for fire alarm system applications under all power conditions.The unique regulation techniques ensure that even when running on standby batteries, a stable 24V supply is available to all parts of the system ensuring that all 24V powered devices connected are supplied with optimum power.
The powerful onboard micocontroller ensures that all battery types are conditioned with optimum, temperature-compensated charging algorithms to maximise battery life and maintain batteries in top condition.
Syncro Power EN54-4 compliant power supplies can be fitted with an optional dual fused output monitoring module to ensure compliance with European standards when supplying fire control panels with an external power supply.
Enclosed units are available to match both Sigma and Syncro equipment ranges and all are finished with matching livery and provide power on and power fault indications.
| Key Features |
|---|
| > EN54-4 certified PSU > 24v 5.25Amp > Max 17Ah batteries > Regulated, true 24V output > Intelligent battery charging and temperature compensation > Status indicators for monitored faults |
| Manufacturer | Kentec Electronics |
|---|---|
| MPN | K2540003 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Construction | 1.2mm mild steel |
| IP Rating | IP30 |
| Finish | Epoxy powder coated |
| Colour - lid & box | BS 00 A 05 grey - fine texture |
| Weight | 6kg |
| Mains input supply voltage | 230V AC 50/60Hz or 110V AC 50/60Hz (link selectable) |
| Mains supply fuse | 250V, 3A, SB, 5mm X 20mm |
| Load output voltage | 19-30V DC +/- 1% |
| Maximum load current – K25400 models | 5.25 Amps continuous with maximum battery charge output of 1.25A |
| Maximum load current – K25250 models | 2.5 Amps continuous with maximum battery charge output of 1.0A |
| Maximum ripple | 200 milliamps |
| Load fuse | 5 Amp, self resetting Polyfuse |
| Maximum current draw from batteries | 5 Amps |
| Battery charge output voltage | 27.4V DC nominal at 20 degrees C (temperature compensated from -5 to 45 degrees C) |
| Battery charge current | Two stage, constant voltage. 1.25 Amps maximum |
| Deep discharge prevention | Battery disconnects at 19V |
| Compatible batteries | Yuasa – NP7-12, NP12-12, NP17-12, NP24-12 Powersonic – PS-1270, PS-12120, PS-12170, PS12260 |
| Operating temperature | -5 to 45 degrees C |
| Common fault output | Normally energised volt free changeover relay – 30V DC 1 Amp |
| Battery disconnected output | Open collector 50 milliamps |
| Battery low output | Open collector 50 milliamps |
| Charger fault output | Open collector 50 milliamps |
| Earth fault output | Open collector 50 milliamps |
| Mains failed output | Open collector 50 milliamps |
| Fault output connector | 14 way DIL header 0.1” spacing |
| Mains connector | 3 way terminal, 7.62mm spacing, 2.5mm maximum cable size |
| Load connector | 2 way terminal, 7.62mm spacing, 2.5mm maximum cable size |
| Battery connector | 2 way terminal, 7.62mm spacing, 2.5mm maximum cable size |
| Front panel Power On indicator | Green LED |
| Front panel Fault indicator | Yellow LED |
| Power output | Dual 24V supply terminals with EN54-4 clause 6.4 interface (when fitted with optional dual fused output monitoring module) |
