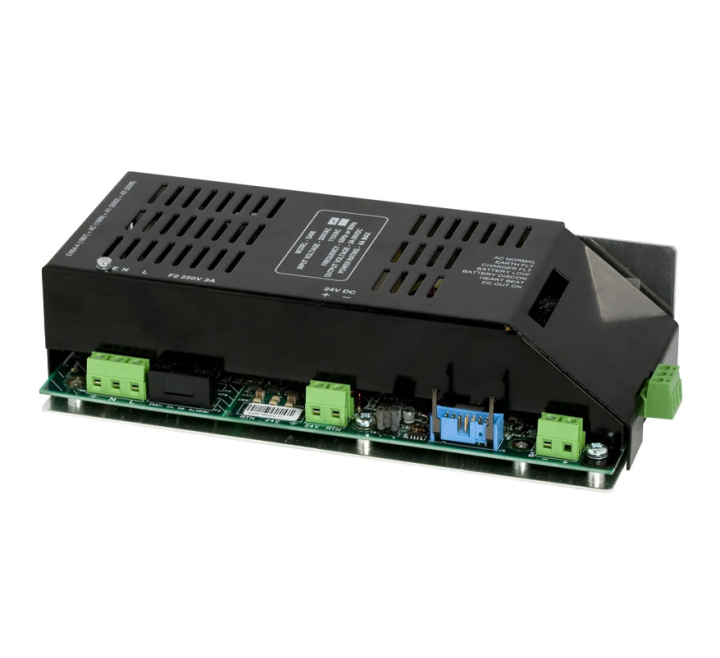

Kentec 2.5 Amp Power Supply / Battery Charger Unit (Chassis Only) (K407)
Limited Stock
Product Details for Kentec 2.5 Amp Power Supply / Battery Charger Unit (Chassis Only) (K407)
Kentec 2.5 Amp Power Supply / Battery Charger Unit (Chassis Only) (K407)
The K407 power supply/battery charger has been developed using switched-mode technology to produce an efficient and lightweight power unit for a host of fire alarm applications.
Suited to almost any application, the K407 is designed to be a universal power source which will reduce spares stock holding and increase the serviceability of systems.
The comprehensive monitoring features of the K407 include true battery present detection, low battery voltage warning and mains fail warning.
These features combined with the temperature-compensated charger output will increase the service life of sealed lead acid batteries.
The K407 power supplies are chassis-only versions for mounting into existing enclosures of various sizes to suit different battery capacities.
Key Features of the K407 |
|---|
|
> Complies with EN54-4
> Fully enclosed construction > Small & lightweight > True 2.5 Amp continuous output > Comprehensive fault monitoring > Temperature-compensated charger > Wide input supply voltage > Low battery shut off to prevent deep discharge of battery |
| Brand | Kentec Electronics |
|---|---|
| Manufacturer Part No. | K407 |
FAQ’s for Kentec 2.5 Amp Power Supply / Battery Charger Unit (Chassis Only) (K407)
Product Specification for Kentec 2.5 Amp Power Supply / Battery Charger Unit (Chassis Only) (K407)
| Construction | Aluminium base - sheet steel cover |
| Finish | Epoxy powder coated |
| Colour | Black |
| Size | 226mm x 120mm x 55mm |
| Weight | 0.9Kg |
| Supply voltage | 230V AC (+10%/-15%) |
| Output voltage | 24V DC |
| Total output current | 3.5 Amps (continuous) |
| Battery charge current | 1.00 Amps max. |
| Load current | 2.5 Amps (with flat battery) |
| Fault outputs rating | 50mA max. |
| Mains fuse | 3 Amp 20mm HRC |
| Load fuses | 3 Amp (self-resetting) |
| Mains failed warning | Switched -ve output |
| Battery disconnected warning | Switched -ve output |
| Battery low warning | Switched -ve output |
| Battery overcharge warning | Switched -ve output |
| Earth fault warning | Switched -ve output |
| Common fault output | Switched -ve output |
| Operating temperature | -5 to +50 deg. C |
