Hyfire Static Wireless Remote Indicator (HFW-RI-02)
Discontinued
Alternative Products
Product Details for Hyfire Static Wireless Remote Indicator (HFW-RI-02)

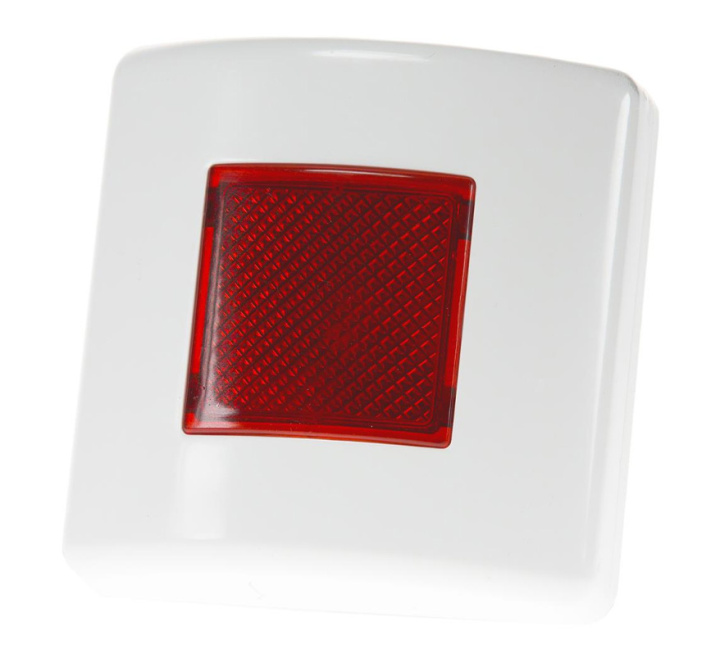

The Hyfire HFW-RI-02 Wireless Remote Indicator is a low-profile unit with a large red LED panel, which can be used to indicate a variety of events or alarms on the fire system.
When used with the Hyfire HFW-W2W-01 translator module the unit is fully programmable through the control equipment cause and effect. The device is ideal for indicating the activation of a detector which is located where visual alarm confirmation is difficult, such as a lift shaft, ceiling void or locked room. Indication of the operation of other parts of the fire system is also possible.
Powered by standard lithium batteries and utilising well-proven adaptive radio signal processing algorithms ensures the highest levels of life safety and reliability.
Key Features of the HFW-RI-02 |
|---|
|
> IP42 rated
> Low profile design > Supplied with back box and batteries > 3rd party approval to ETSI 300-220 > Bi-directional wireless communication > 5 year product warranty > Utilises dual low cost standard lithium batteries > Bright indicator panel (red) > Compatible with static Hyfire translators and expanders > 5 year expected battery life > Site programmable |
| Brand | Hyfire |
|---|---|
| Manufacturer Part No. | HFW-RI-02 |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Argus Vega |
| Warranty | 5 Years |
FAQ’s for Hyfire Static Wireless Remote Indicator (HFW-RI-02)
Product Specification for Hyfire Static Wireless Remote Indicator (HFW-RI-02)
| Dimensions: |
80mm x 80mm x 33mm |
| Operating frequency range: |
868 - 870 MHz |
| Operating frequency channels: | 7 |
| Comms range with translator / expander module: | ≤ 150m in open space |
| Primary battery: | CR123A (3V & 1.2Ah) |
| Secondary battery: | CR2032A (3V & 0.24Ah) |
| IP rating: | IP42 |
| Operating temperature (no icing): | -10oC to +55oC |
| Max humidity (non condensing): | 95% RH |
| Weight: | 120g (excl. batteries) |
