Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.

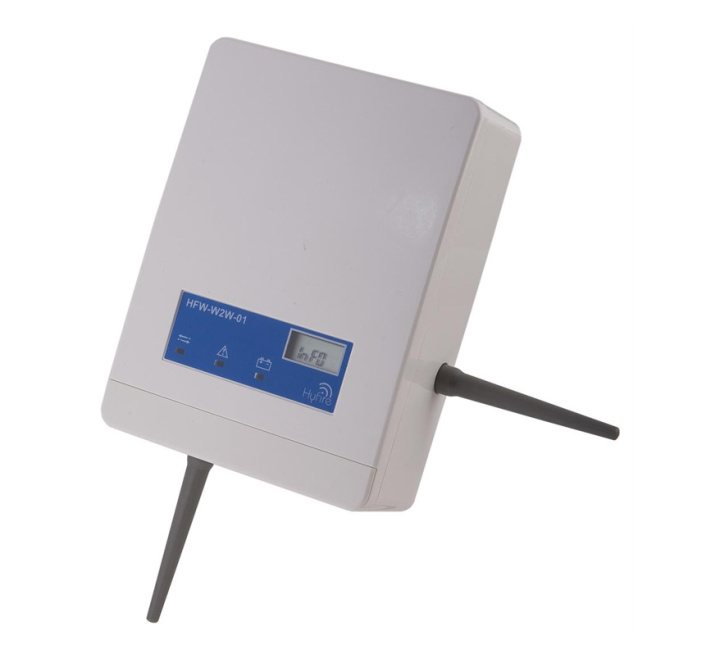

Hyfire Static Wireless Translator Module (Loop Powered) (HFW-W2W-01)
SKU
HFW-W2W-01
Hyfire HFW-W2W-01 Wireless Static Translator Module (Loop Powered)
Discontinued
Alternative Products
Product Details for Hyfire Static Wireless Translator Module (Loop Powered) (HFW-W2W-01)
The Hyfire HFW-W2W-01 Translator Module is one of the core components of the Hyfire intelligent hybrid fire detection and alarm system. When connected on to a compatible loop, the unit is capable of linking up to 32 fully intelligent wireless field devices with the fire alarm system.
The translator allows seamless integration of the wireless devices alongside standard wired devices or can be used independently to form completely wireless systems. Using well-proven wireless technology and a patented orthogonal antenna design ensures the highest levels of life safety and system reliability.
Key Features of the HFW-W2W-01 |
|---|
|
> Loop Powered
> Proven Wireless Technology > 3rd party approval to EN54-17, EN54-18 and EN54-25 > Bi-directional wireless communication > 5 year product warranty > IP protection for challenging environments > Compatible with up to 7 expander modules > Low current consumption > Supports full device intelligence > Site programmable |
| Brand | Hyfire |
|---|---|
| Manufacturer Part No. | HFW-W2W-01 |
| Primary Power Source | 24V DC |
| System Type | Wireless |
| Protocol Compatibility | Argus Vega |
| Warranty | 5 Years |
FAQ’s for Hyfire Static Wireless Translator Module (Loop Powered) (HFW-W2W-01)
No questions yet. Be the first to ask the question!
Product Specification for Hyfire Static Wireless Translator Module (Loop Powered) (HFW-W2W-01)
| Dimensions (without antennae): |
120mm x 160mm x 51mm |
| Operating frequency range: |
868 - 870 MHz |
| Loop power supply range: | 18Vdc - 40Vdc |
| Max radiated power: | 5dBm (3mW) |
| Operating frequency channels: | 7 |
| Communication range with the Expander Module: | ≤250m in open space |
| Communication range with wireless field devices: | ≤150m in open space |
| IP rating: | IP65 |
| Operating temperature: | -10oC to +55oC |
| Max humidity (non condensing): | 95% RH |
| Typical current consumption: |
20mA @ 24V dc |
| Weight: | 300g (excl. batteries) |
