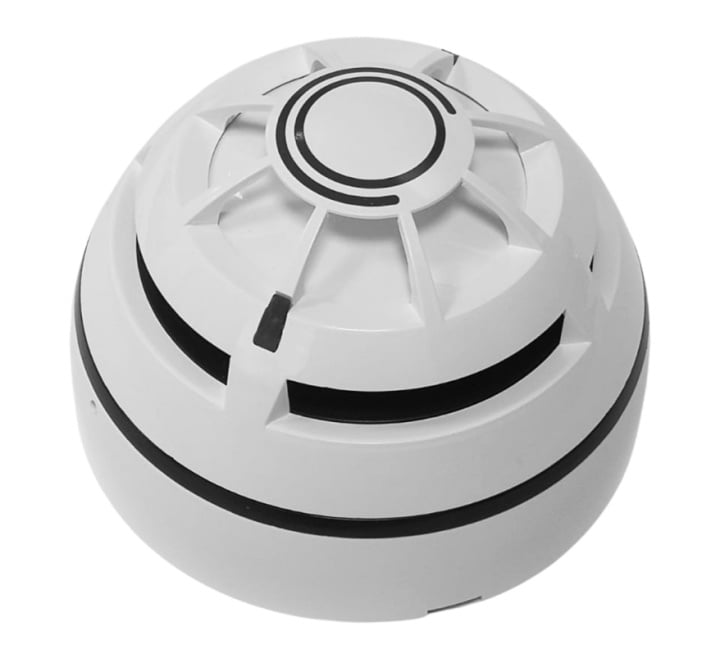

Hyfire Static Wireless Tri-Sensor Detector c/w Base (HFW-TRI-05)
Discontinued
Alternative Products
Product Details for Hyfire Static Wireless Tri-Sensor Detector c/w Base (HFW-TRI-05)
The Hyfire HFW-TRI-05 Tri-Sensor Detector (CO, smoke, heat) is the latest in wireless multi-criteria detection technology. It is a fully intelligent device and compatible with the Static wireless translator and expander modules.
The detector combines Carbon Monoxide (CO) sensing, dual-path smoke and heat detection technologies for unrivalled performance, maintaining high levels of unwanted alarm rejection. The device complies with EN54-31 (point detectors using a combination of smoke, carbon monoxide and optionally heat sensors) which considers two possible MT and NT operative modes. The MT mode requires at least two independent stimuli (eg smoke & CO, thermal & smoke) to get to a full alarm, whilst the NT operative mode allows a full alarm to be generated from a single stimulus.
The HFW-TRI-05 offers various possible environmental profiles for each of the two modes, further improving nuisance rejection and guaranteeing the promptest fire detection.
Key Features of the HFW-TRI-05 |
|---|
|
> CO sensor and smoke / heat detection
> Choice of sensitivity settings > Supplied with standard base and batteries > Dual angle scattering analysis optical chamber design > Solid electrolite carbon monoxide sensor (10 years life) > Internal algorithm processing optimises performance > 12 profiles available, from harsh/industrial to ultraclean environments > Utilises standard low cost lithium battery technology > 8 year battery life > Device identification tab > Fast magnet test feature for engineer testing > Twin alarm LEDs for 360° visibility > Approved to EN54-5, EN54-7, EN54-31 and EN54-25 |
| Brand | Hyfire |
|---|---|
| Manufacturer Part No. | HFW-TRI-05 |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Argus Vega |
| Sensor Type | Combined Optical, Thermistor and Electrochemical |
| Detectable Medium | Smoke, Heat, Carbon Monoxide (CO) |
| Colour | White |
| Warranty | 5 Years |
FAQ’s for Hyfire Static Wireless Tri-Sensor Detector c/w Base (HFW-TRI-05)
Product Specification for Hyfire Static Wireless Tri-Sensor Detector c/w Base (HFW-TRI-05)
| Dimensions: |
110mm x 70mm |
| Operating frequency range: |
868 MHz |
| Max radiated power: | 14dBm (25mW) |
| Operating channels: | Multiple |
| Choice of sensitivity settings: | Modes MT & NT |
| Magnet test: | Yes |
| Batteries: | 2 x CR123A |
| IP rating: | IP40 |
| Operating temperature range: | -10oC to +55oC |
| Max humidity (non condensing): | 95% RH |
| Solid electrolite cell life: | 10 years |
| Weight: | 200g |
