Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.
Hyfire Static Wireless Survey & Test Kit c/w Tablet (HFW-STK-03)
SKU
HFW-STK-03

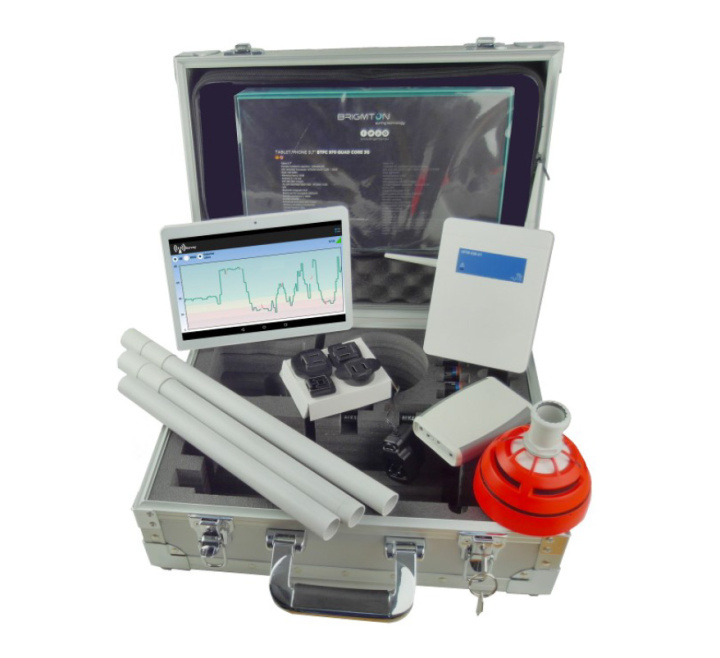

Hyfire HFW-STK-03 Survey & Test Kit c/w Tablet (Libra)
Discontinued
Alternative Products
Product Details for Hyfire Static Wireless Survey & Test Kit c/w Tablet (HFW-STK-03)
The Hyfire HFW-STK-03 is a comprehensive test kit housed in a rugged case. The kit allows for one-man radio integrity surveys to be carried out to determine the location and optimum quantities of Hyfire Translators, Expanders and Field devices.
The kit includes the following components:
- Test Expander
- 12Vdc power supplier
- Wireless detector survey pole
- Survey detector's supporting pole
- Dongle interface device
- Tablet
- Batteries
- Screws
- User manual
Key Features of the HFW-STK-03 |
|---|
|
> Hyfire Radio Survey & Test Kit
> Diagnostic tools > with rugged storage case > Contents: Test Expander, 12Vdc power supplier, wireless detector survey pole, survey detector's supporting pole, dongle interface device, tablet, batteries, screws and user manual |
| Brand | Hyfire |
|---|---|
| Manufacturer Part No. | HFW-STK-03 |
| System Type | Wireless |
| Protocol Compatibility | Argus Vega |
| Warranty | 5 Years |
FAQ’s for Hyfire Static Wireless Survey & Test Kit c/w Tablet (HFW-STK-03)
No questions yet. Be the first to ask the question!
Product Specification for Hyfire Static Wireless Survey & Test Kit c/w Tablet (HFW-STK-03)
| HFW-EM-01 Test Expander | |
| Dimensions: With antennas Without antennas |
190mm x 230mm x 50mm 120mm x 160mm x 50mm |
| Available operating frequencies: | 868/865/916/434 MHz |
| Max. radiated power: | 5 dBm (3mW) 10 dBm (10mW) for 434MhZ band |
| Power supply voltage range: |
0 Vdc - 30 Vdc |
| Current load: |
30 mA at 12V dc |
| Operating environmental range: |
-30oC to +50oC |
| Weight: |
300g |
| IP rating: | IP 51C |
| HFW-EM-01 Power Supplier | |
| Dimensions: | 37.0 x 55.1 x 42.9mm |
| Output voltage: | 12V dc |
| Output current load: | 420 mA |
| Output connector type: | 5.5 x 2.1 x 12mm DC Jack |
| Input voltage range: | 90 Vac - 264 Vac |
| Input current: | 0.25 A (100 Vac) |
| Input frequency: | 63 Hz |
| Input protection: | Internal T1.0A/250 Vac fuse |
| Weight: | 80g |
| Suggested output voltage range for power supply battery: 12Vdc - 24Vdc | |
| Survey wireless detector probe | |
| Available operating frequencies: | 868/865/916/434 MHz |
| Number of available radio channels: | 7 channels, 6 channels for the 434 MHz band |
| Maximum radiated power: | < 14 dBm (25 mW) |
| Power supply batteries type: | 2 x CR123A (3 Vdc) |
| IP rating: | IP40 |
| Operative environmental temperature range: | from -10oC to +55oC |
| Colour: | Orange fluorescent |
| Dimensions: | 110mm x 65mm |
| Weight: | 190g |
| Dongle interface device | |
| Available operating frequencies: | 868/865/916/434 MHz |
| Number of available radio channels: | 7 channels, 6 channels for the 434 MHz band |
| Maximum radiated power: | < 14 dBm (25 mW) |
| Power supply batteries type: | 2 x LR6 AA (1.5 Vdc) |
| USB connector characteristics for external power supply: | 5 Vdc, 100mA |
| IP rating: | IP40 |
| Operative environmental temperature range: | from -10oC to +50oC |
| Dimensions: | 118mm x 79mm x 19mm |
| Weight: | 90g |
