Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.
Hyfire Static Wireless Single Channel Input Module c/w Batteries (HFW-IM-03)
SKU
HFW-IM-03

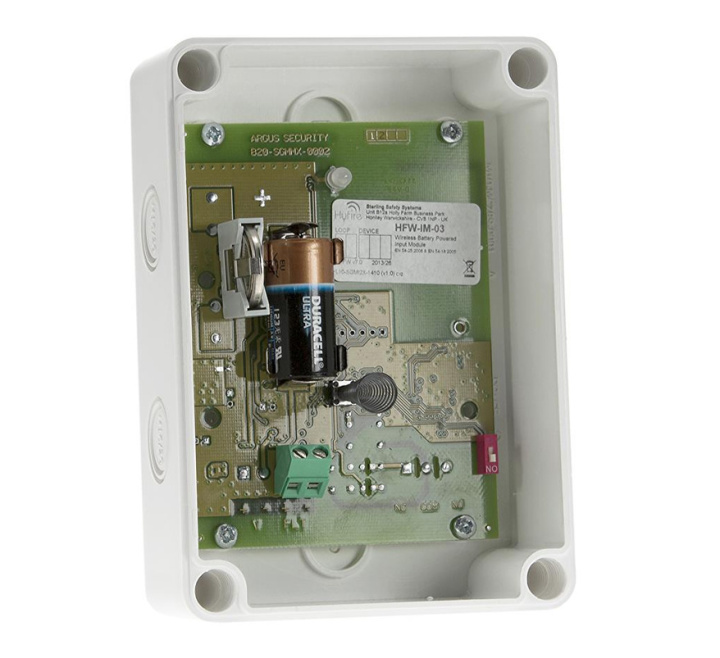

Hyfire HFW-IM-03 Wireless Single Channel Input Module c/w Batteries
Alternative Products
Product Details for Hyfire Static Wireless Single Channel Input Module c/w Batteries (HFW-IM-03)
The Hyfire HFW-IM-03 Wireless Single Channel Input Module has been designed to provide a convenient and cost-effective solution for monitoring third-party equipment.
The unit has a single fully monitored input circuit which allows simple integration of third-party equipment with the fire system.
The unit is fully compatible with all Hyfire Translator and Expander modules and the well-proven adaptive radio signal processing algorithms ensure the highest levels of life safety and system reliability
Key Features of the HFW-IM-03 |
|---|
| > Supplied with batteries > 3rd party approval to EN54-25 & EN54-18 > 5 year product warranty > 5 year expected battery life > Self-optimising wireless frequency and amplitude algorithms > Bi Directional wireless communication > Fully intelligent > Input circuits are fully monitored for fire and fault conditions > Utilises dual low-cost lithium battery |
| Brand | Hyfire |
|---|---|
| Manufacturer Part No. | HFW-IM-03 |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Argus Vega |
| Warranty | 5 Years |
FAQ’s for Hyfire Static Wireless Single Channel Input Module c/w Batteries (HFW-IM-03)
No questions yet. Be the first to ask the question!
Product Specification for Hyfire Static Wireless Single Channel Input Module c/w Batteries (HFW-IM-03)
| Dimensions: | 95mm x 135mm x 55mm |
| Operating frequency range: | 868 - 870 MHz |
| Max. radiated power: | 5dBm (3mW) |
| Radio signal modulation type: | FSK |
| Operating frequency channels: | 7 |
| Comms range with translator / expander module: | ≤ 150m in open space |
| Cable entry knockout holes: | 6 x M16/20 |
| Applicable wire gauge range: | 0.5mm2 to 2.5mm2 |
| Primary battery: | CR123A (3V & 1.2Ah) |
| Secondary battery: | CR2032 (3V & 0.24 Ah) |
| Operating temperature (no icing): | -10oC to +55oC |
| Max humidity (non condensing): | 95% RH |
| Weight: | 190g (excl. batteries) |
