Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.

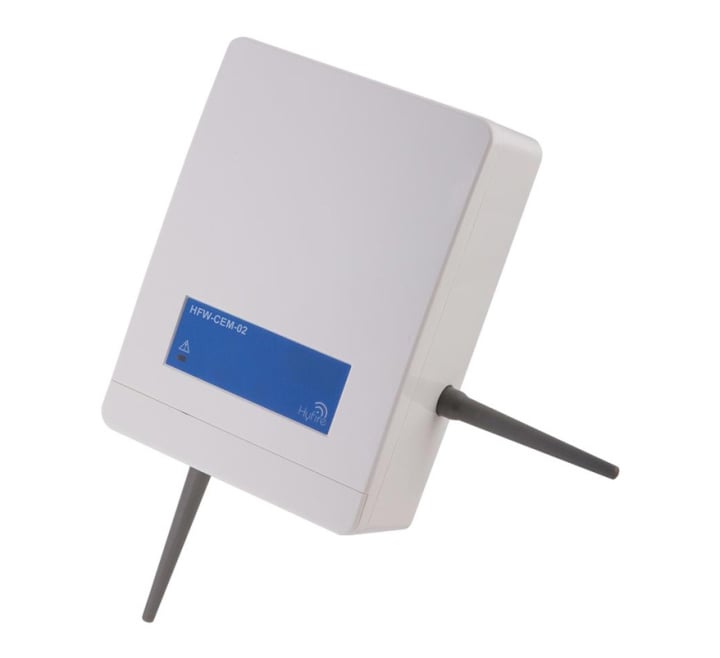

Hyfire Static Wireless Conventional Interface Module (HFW-CEM-02)
SKU
HFW-CEM-02
Hyfire HFW-CEM-02 Wireless to Conventional Interface Module (Requires Power Supply)
Discontinued
Alternative Products
Product Details for Hyfire Static Wireless Conventional Interface Module (HFW-CEM-02)
The Hyfire HFW-CEM-02 Conventional Expander Module has been designed to allow the integration of wireless detection and alarm type field devices into almost any type of system. Regardless of whether the system is intelligent or conventional the unit can be simply connected to a conventional zone, sounder circuit or both, directly or via loop modules.
The wireless field devices connect to the system as non-addressable devices, however still utilise the same well-proven wireless technology as Hyfire intelligent wireless devices and are fully monitored for alarm and fault, ensuring the highest levels of life safety and reliability are maintained.
Key Features of the HFW-CEM-02 |
|---|
|
> 3rd party Approval to EN54-18 and EN54-25
> Bi-directional wireless communication > 5 year product warranty > IP protection for mounting in challenging environments > Low current consumption > Devices are fully monitored for alarm and fault > Compatible with up to 7 expander modules > Proven wireless technology > Compatible with most system types > Site programmable |
| Brand | Hyfire |
|---|---|
| Manufacturer Part No. | HFW-CEM-02 |
| Primary Power Source | 24V DC |
| System Type | Wireless |
| Protocol Compatibility | Argus Vega |
| Warranty | 5 Years |
FAQ’s for Hyfire Static Wireless Conventional Interface Module (HFW-CEM-02)
No questions yet. Be the first to ask the question!
Product Specification for Hyfire Static Wireless Conventional Interface Module (HFW-CEM-02)
| Dimensions (without antennae): |
120mm x 160mm x 51mm |
| Operating frequency range: |
868 - 870 MHz |
| Power supply range: | 9Vdc - 30Vdc |
| Max radiated power: | 5dBm (3mW) |
| Operating frequency channels: | 7 |
| Communication range with the Expander Module: | ≤250m in open space |
| Communication range with wireless field devices: | ≤150m in open space |
| Max. no. of devices per CEM | 32 |
| IP rating: | IP65 |
| Temperature range (no icing): | -10oC to +55oC |
| Max humidity (non condensing): | 95% RH |
| Weight: | 330g |
