Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.
Hyfire Static Wireless Sounder / Visual Indicator Base (HFW-BSB-05)
SKU
HFW-BSB-05

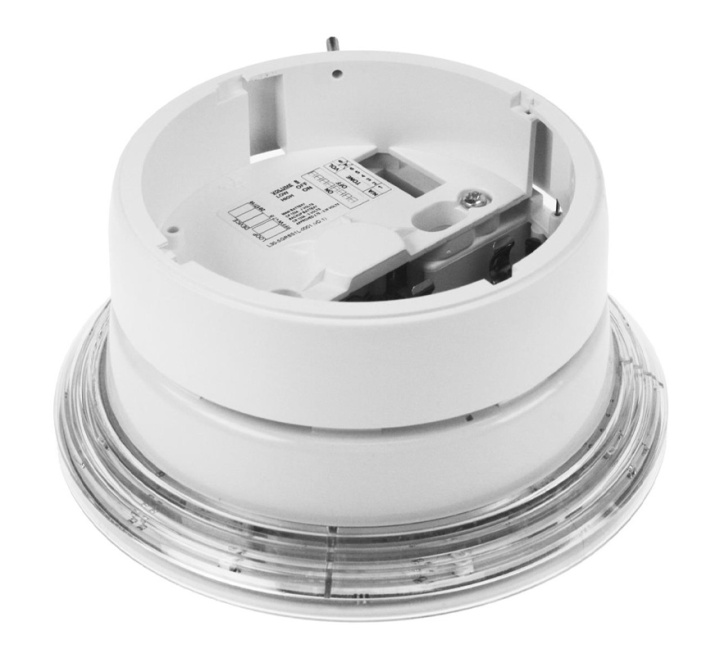

Hyfire HFW-BSB-05 Wireless Sounder Base / Visual Indicator Beacon
Discontinued
Alternative Products
Product Details for Hyfire Static Wireless Sounder / Visual Indicator Base (HFW-BSB-05)
The Hyfire HFW-BSB-05 Wireless Sounder Base with Visual Indicator unit is an aesthetically pleasing and cost-effective alternative to traditional wall-mounted units where visual impact is important.
Each unit has an integral moulded base for mounting a Hyfire wireless detector or a sounder cover if a detector is not required. The unit has as standard 32 recognised sounder tones and 3 levels of volume adjustment, all of which can be easily configured on-site.
In addition to the audible warning, the unit is also fitted with an LED visual indicator for added warning capability. Utilising well-proven adaptive radio signal processing algorithms ensures the highest levels of life safety and reliability.
Key Features of the HFW-BSB-05 |
|---|
|
> For indoor use only
> Integral detector base > 3rd party Approval to EN54-25 and EN54-03 > Bi-directional wireless communication > 5 year product warranty > Utilises dual low cost standard lithium batteries > Choice of 32 recognised tones > Compatible with all Hyfire translators and expanders > Additional LED visual indicator > Red and white cover options > 3 volume levels > 3 year expected battery life |
| Brand | Hyfire |
|---|---|
| Manufacturer Part No. | HFW-BSB-05 |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Argus Vega |
| Colour | White |
| Warranty | 5 Years |
FAQ’s for Hyfire Static Wireless Sounder / Visual Indicator Base (HFW-BSB-05)
No questions yet. Be the first to ask the question!
Product Specification for Hyfire Static Wireless Sounder / Visual Indicator Base (HFW-BSB-05)
| Dimensions: |
141mm x 66mm |
| Operating frequency range: |
868 - 870 MHz |
| Operating frequency channels: | 7 |
| Comms range with translator / expander module: | ≤ 150m in open space |
| Sound Output (typical): |
70 - 95 dBA (tone dependant) |
| No. of tones: | 32 |
| Visual Indicator frequency: | 1 Hz |
| Primary battery: | CR123A (3V & 1.2Ah) |
| Secondary battery: | CR123A (3V & 1.2Ah) |
| Primary battery lifespan (typical): | ≥ 3 years |
| Secondary battery lifespan (typical): | ≥ 2 months |
| IP rating: | IP21C (indoor only) |
| Operating temperature range: | -10oC to +55oC |
| Max humidity (non condensing): | 95% RH |
| Weight: | 260g (excl. batteries) |
