Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.
Hyfire Static Wireless Single Channel Output Module c/w Batteries (HFW-BOM-03)
SKU
HFW-BOM-03

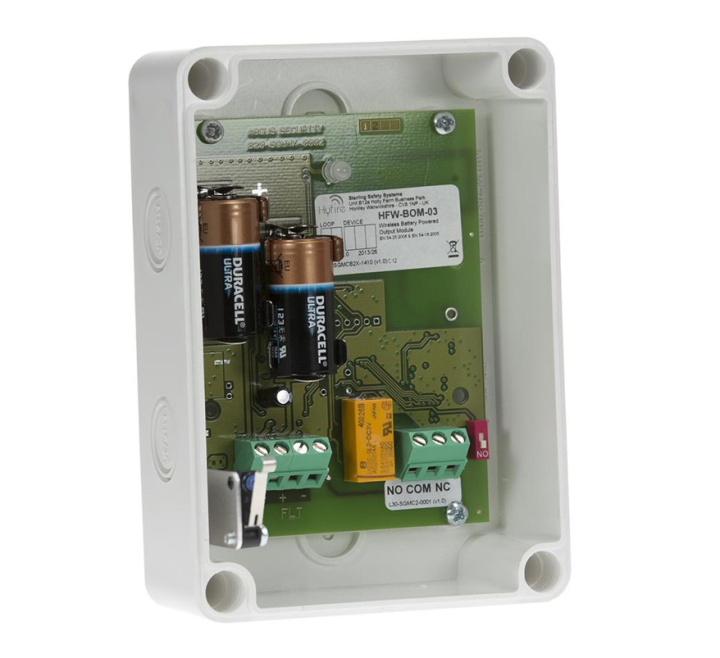

Hyfire HFW-BOM-03 Wireless Single Channel Output Module c/w batteries
Discontinued
Alternative Products
Product Details for Hyfire Static Wireless Single Channel Output Module c/w Batteries (HFW-BOM-03)
The Hyfire HFW-BOM-03 Wireless Single Channel Output Module has been designed to allow easy control of a variety of third-party equipment including access control doors, ventilation plant and fire extinguishing systems.
The unit is powered entirely from its internal battery supply and is fitted as standard with both a set of change-over relay contacts and a 24V dc output. The 24V output is capable of supplying power for operating low current third-party equipment directly from the internal batteries.
Key Features of the HFW-BOM-03 |
|---|
|
> 3rd party approval to EN54-18 and EN54-25
> 5 year product warranty > Compatible with all Hyfire wireless translators and expanders > 3 year expected battery life > Self-optimising wireless frequency and amplitude algorithms > Fully intelligent > Change over relay and 24V output functionality > On site programmable 12V/24V output |
| Brand | Hyfire |
|---|---|
| Manufacturer Part No. | HFW-BOM-03 |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Argus Vega |
| Warranty | 5 Years |
FAQ’s for Hyfire Static Wireless Single Channel Output Module c/w Batteries (HFW-BOM-03)
No questions yet. Be the first to ask the question!
Product Specification for Hyfire Static Wireless Single Channel Output Module c/w Batteries (HFW-BOM-03)
| Dimensions: |
95mm x 135mm x 55mm |
| Operating frequency range: |
868 - 870 MHz |
| Max. radiated power: | 5dBm (3mW) |
| Radio signal modulation type: | FSK |
| Operating frequency channels: | 7 |
| Comms range with translator / expander module: | ≤ 150m in open space |
| IP Rating: | IP65 |
| Max. Current Available: | 50mA @ 12V dc 50mA @ 24V dc |
| Relay specifications: | 2A (60W) @ 30V dc |
| Primary & secondary batteries: | CR123A (3V & 1.2Ah) |
| Operating temperature (no icing): | -10oC to +55oC |
| Max humidity (non condensing): | 95% RH |
| Fault Supervision Resistor: | 5.6K |
| Weight: | 210g (excl. batteries) |
