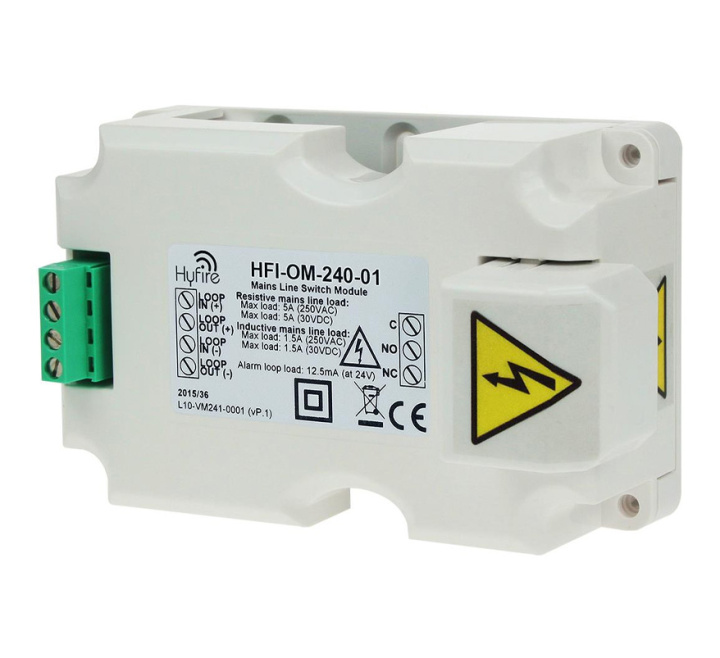

Hyfire Mains Rated Relay Unit (HFI-OM-240-01)
Discontinued
Alternative Products
Product Details for Hyfire Mains Rated Relay Unit (HFI-OM-240-01)
The Hyfire HFI-OM-240-01 relay unit upgrades a standard HFI-OM-RM-01 output module to a unit capable of switching mains voltages and higher currents. Utilising an existing module for communication, control and monitoring functions means the unit is fully compatible with all panels supporting the Hyfire loop protocol.
The unit can easily be upgraded to a wireless variant by adding the HFI-240EOL-01 end-of-line module and connecting to a HFW-BOM-03 wireless output module. The units are perfect for switching mains voltage to equipment such as dampers and sound systems or where higher current switching is required at lower voltages.
Key Features of the HFI-OM-240-01 |
|---|
|
> 250V Mains voltage switching capacity
> Utilises the highly reliable Hyfire digital protocol > Robust design > Compatible with all Hyfire protocol systems > Optional IP65 enclosure > 5 year product warranty > Single set of heavy duty change over contacts > No PSU required > Wired and wireless variants available |
| Brand | Hyfire |
|---|---|
| Manufacturer Part No. | HFI-OM-240-01 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Argus Vega |
| Warranty | 5 Years |
FAQ’s for Hyfire Mains Rated Relay Unit (HFI-OM-240-01)
No questions yet. Be the first to ask the question!
Product Specification for Hyfire Mains Rated Relay Unit (HFI-OM-240-01)
| Dimensions: |
105mm x 69mm x 53mm |
| Max. current: | 12.5mA @ 24 V dc |
| Loop voltage range: | 18 - 40 V dc |
| Wired operation requires: | HFI-OM-RM-01 |
| Wireless operation requires: | HFW-BOM-03 & HFI-240EOL-01 |
| Max mains relay load: Resistive Inductive |
5A @ 240 V ac 5A @ 250V ac |
| IP Rating: | IP21C |
| Temperature range (no icing): | -10oC to +55oC |
| Max humidity (non condensing): | 95% RH |
| Weight: | 100g |
