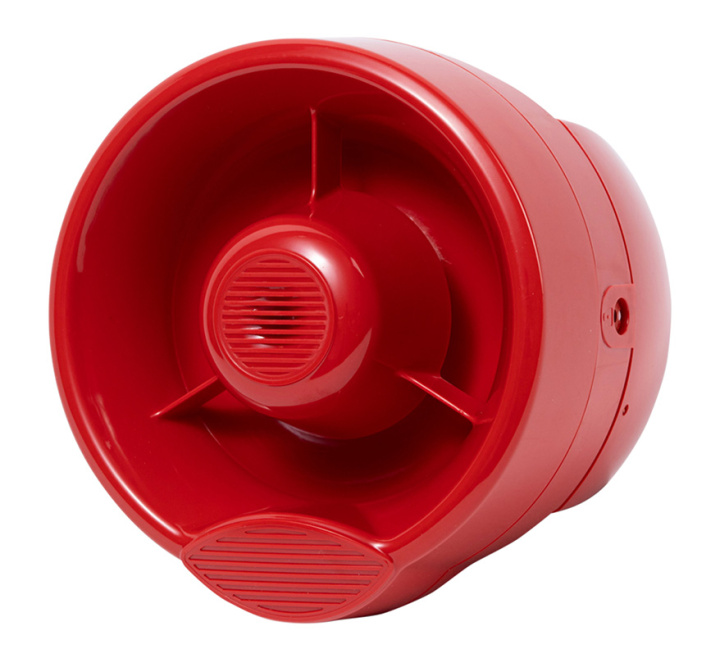

Hyfire Conventional Wall Sounder (Red) (HFC-WSR-03)
SKU
HFC-WSR-03
£37.06
£30.88
HFC-WSR-03 Hyfire Conventional Wall Sounder - Red (EN54-23)
- Buy 10 for £35.34 £29.45 each and save 5%
In Stock
Product Details for Hyfire Conventional Wall Sounder (Red) (HFC-WSR-03)
The Hyfire HFC-WSR-03 Conventional Wall Sounder forms the core of our modular alarm device range. The unit can either be used as a standalone conventional device or as an intelligent unit by the addition of a wired module (HFI-SIM-01) or wireless module (HFW-SIM-01).
All devices are weatherproof, therefore this combined with the modular approach means the majority of applications can be achieved with very few stock components. The unit is equipped with 3 levels of volume adjustment and 32 recognised tones which can be set via the control equipment or locally at the sounder.
Key Features of the HFC-WSR-03 |
|---|
|
> Flexible modular design, compatible with Hyfire intelligent & wireless modules
> 5 year product warranty > 3rd party approval to EN54-3 > 32 Tone Settings > Two stage alarm capability > Weatherproof as standard > High sound output capability > On site adjustable volume settings > Microphone self test facility > Robust and high reliability |
| Brand | Hyfire |
|---|---|
| Manufacturer Part No. | HFC-WSR-03 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Colour | Red |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Hyfire Conventional Wall Sounder (Red) (HFC-WSR-03)
No questions yet. Be the first to ask the question!
Product Specification for Hyfire Conventional Wall Sounder (Red) (HFC-WSR-03)
| Product: | Hyfire Conventional Wall Sounder - Red, EN54-23 |
| Product code: | HFC-WSR-03 |
| Dimensions: |
see attached datasheet for diagram |
| Power supply voltage range: |
15Vdc - 40Vdc |
| Activated current load (High vol) |
5-8 mA @ 24Vdc |
| Acoustic frequency range: | 400 - 2900 Hz |
| Max. acoustic output: | 100 dB(A) @1m |
| Operating temperature: | -25oC to +70oC (no icing) |
| Max humidity (non condensing): | 95% RH |
| Ingress protection: |
IP65 |
| Weight: | 290g (inc. back box) |
