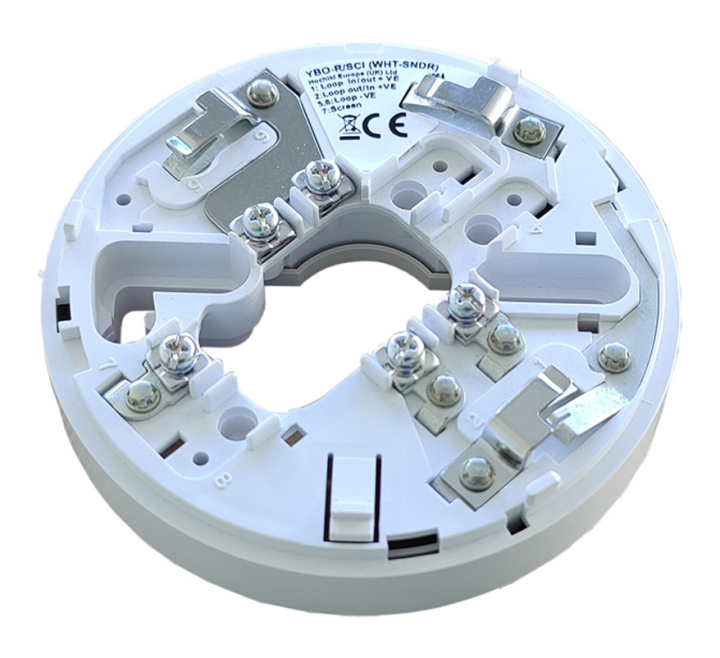

Hochiki YBO-R/SCI(WHT/SNDR) Short-Circuit Isolator Base - for Wall Sounders (White)
SKU
YBO-R/SCI(WHT/SNDR)
£15.85
£13.21
Hochiki YBO-R/SCI(WHT/SNDR) Short-Circuit Isolator Base - for Wall Sounders (White)
Limited Stock
Product Details for Hochiki YBO-R/SCI(WHT/SNDR) Short-Circuit Isolator Base - for Wall Sounders (White)
The Hochiki YBO-R/SCI(WHT/SNDR) is a Loop Isolator, which is fully compatible with Hochiki's ESP analogue addressable protocol
The YBO-R/SCI(WHT/SNDR) Base has been specifically designed to be compatible with the white wall sounder (CHQ-WS2(WHT)) and the white wall sounder beacon (CHQ-WSB2(WHT))
The Base incorporates an amber LED to show when it is isolating a section of the loop
The YBO-R/SCI(WHT/SNDR) does not use an address, and has the same wiring configuration as the YBN-R/3 Sensor Base making it very simple to install
The YBO-R/SCI(WHT/SNDR) can also be used without a sounder; a cover (SI-CAP) can be fitted to conceal the wiring connections
Key Features of the YBO-R/SCI(WHT/SNDR) |
|---|
|
> Detects short circuits on loop
> Status LED > Connection of up to 127 per loop > Allows connection of wall sounders from the ESP Range > Bayonet slot, low insertion force for detectors > Quick connection via square cable clamps > Also available in red (for use with red CHQ-WS2 Wall Sounders and red CHQ-WSB2 Wall Sounder Beacons) |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | YBO-R/SCI(WHT/SNDR) |
| Product Series | Hochiki ESP |
| Colour | White |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki YBO-R/SCI(WHT/SNDR) Short-Circuit Isolator Base - for Wall Sounders (White)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki YBO-R/SCI(WHT/SNDR) Short-Circuit Isolator Base - for Wall Sounders (White)
| Description | Hochiki Isolator Bases |
| Product Code | YBO-R/SCI(WHT-SNDR) |
| Dimensions: | Dia:100mm x H:13mm |
| Operating voltage: | 17 - 41 VDC |
| Quiescent current (typical): | 50 μA |
| Current in short circuit: | <10 mA |
| Max. short circuit current: | 1 A |
| Operating temperature range: | -10 °C to + 50 °C |
| Storage temperature range: | -30°C to +60°C |
| Maximum humidity: | 95% RH - Non Condensing (at 40°C) |
| Colour/Case material: | White / ABS |
| Fixing centres: | 48 - 74 mm |
| Approvals: | LPCB, VDS |
| Weight: | 85g |
