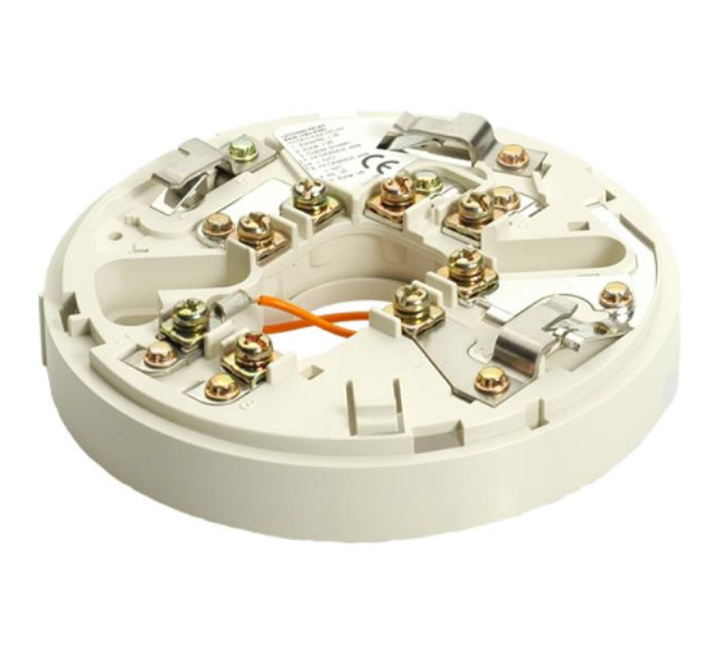

Hochiki YBO-R/6RS Conventional Schottky Diode Relay Base Latching - Ivory
SKU
YBO-R/6RS
£10.80
£9.00
Hochiki YBO-R/6RS Conventional Schottky Diode Relay Base Latching - Ivory
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki YBO-R/6RS Conventional Schottky Diode Relay Base Latching - Ivory
The Hochiki YBO-R/6RS is a Conventional Non-Latching Relay Detector Mounting Base associated with the New CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm control panels.
It is supplied with square cable clamps for secure and reliable cable termination and the base provides line continuity during detector removal, therefore if Call Points can be wired in any order on the zone providing a suitable panel and End Of Line (EOL) unit is used.
The integrated third terminal provides remote indicator output.
Key Features of the YBO-R/6RS |
|---|
|
> Integral remote indicator output
> In-line Schottky Diode for Line Continuity > Rugged design > Quick connections via square cable clamps > Accepts 2.5 mm cables > Bayonet slot, low insertion force for detectors > Approved by LPCB |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | YBO-R/6RS |
| Product Series | Hochiki CDX |
| Colour | Ivory |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki YBO-R/6RS Conventional Schottky Diode Relay Base Latching - Ivory
No questions yet. Be the first to ask the question!
Product Specification for Hochiki YBO-R/6RS Conventional Schottky Diode Relay Base Latching - Ivory
| Description | Hochiki Conventional Latching Schottky Diode Relay Mounting Base |
| Product Code | YBO-R/6RS |
| Dimensions (mm): | Dia: 100 x H 13 |
| Operating voltage: | 9.5 – 30 V dc |
| Relay voltage: | 30 V dc @ 1 A (non-inductive) |
| Operating temperature: | -10oC to +50oC |
| Storage temperature: | -30oC to + 60oC |
| Maximum humidity: | 95% RH - Non Condensing (at 40oC) |
| Fixing centres: | 48 ~ 74 mm |
| Max. wire thickness: | 2.5mm2 cables |
| Colour / Material : | Ivory / ABS |
| Weight: | 87g |
