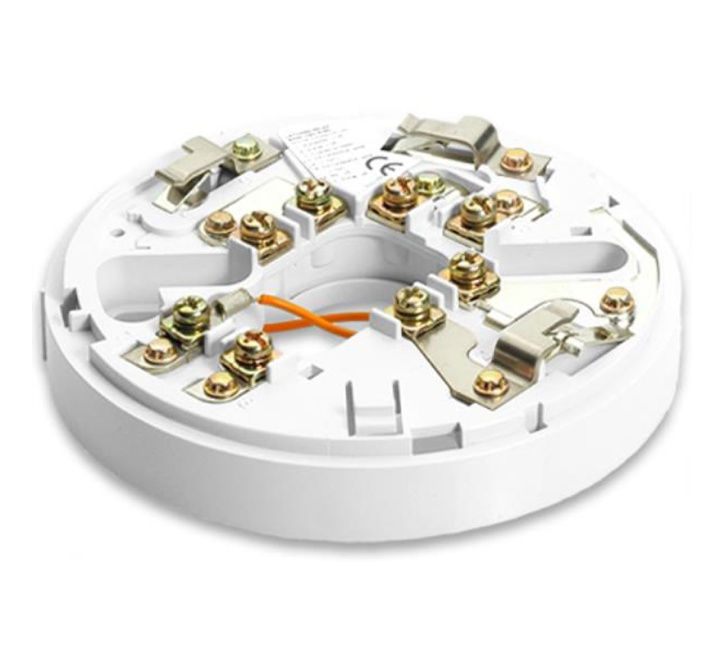

Hochiki YBO-R/6R(WHT) Conventional Relay Base Latching - White
SKU
YBO-R/6R(WHT)
£15.90
£13.25
Hochiki YBO-R/6R(WHT) Conventional Relay Base Latching - White
In Stock
Product Details for Hochiki YBO-R/6R(WHT) Conventional Relay Base Latching - White
The Hochiki YBO-R/6R(WHT) is a Conventional latching relay detector mounting base associated with the HFP CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm and security control panels.
It is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first.
The integrated third terminal provides remote indicator output.
Key Features of the YBO-R/6R(WHT) |
|---|
|
> Integral remote indicator output
> Wide voltage range - can be used in security systems > Rugged design > Quick connections via square cable clamps > Accepts 2.5 mm cables > Bayonet slot, low insertion force for detectors > Approved by LPCB |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | YBO-R/6R(WHT) |
| Product Series | Hochiki CDX |
| Colour | White |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki YBO-R/6R(WHT) Conventional Relay Base Latching - White
No questions yet. Be the first to ask the question!
Product Specification for Hochiki YBO-R/6R(WHT) Conventional Relay Base Latching - White
| Description | Hochiki Conventional Latching Relay Mounting Base |
| Product Code | YBO-R/6R(WHT) |
| Dimensions (mm): | Dia: 100 x H 13 |
| Operating voltage: |
9.5 – 30 V dc |
| Relay voltage: | 30 V dc @ 1 A (non-inductive) |
| Operating temperature: | -10oC to +50oC |
| Storage temperature: | -30oC to + 60oC |
| Maximum humidity: | 95% RH - Non Condensing (at 40oC) |
| Fixing centres: | 48 ~ 74 mm |
| Max. wire thickness: | 2.5mm2 cables |
| Colour / Material : | White / ABS |
| Weight: | 87g |
