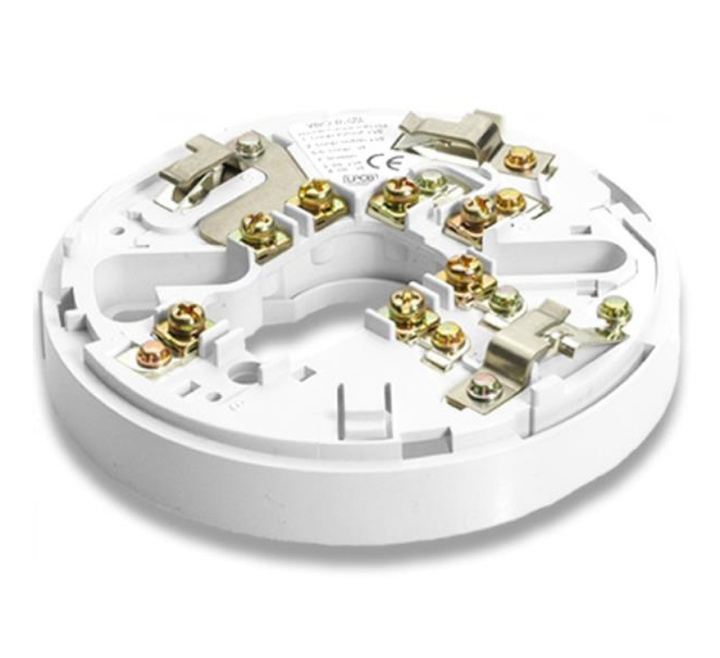

Hochiki YBO-R/6PA(WHT) Conventional 2 Wire Base - White
SKU
YBO-R/6PA(WHT)
£13.22
£11.02
Hochiki YBO-R/6PA(WHT) Conventional 2 Wire Base - White
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Hochiki YBO-R/6PA(WHT) Conventional 2 Wire Base - White
The Hochiki YBO-R/6PA(WHT) is a Conventional Detector Mounting Base for 2-Wire (sav-wire) systems where detectors and sounders are on same zone cables (control panel compatibility required).
Key Features of the YBO-R/6PA(WHT) |
|---|
|
> Integral remote indicator output
> Rugged design > Dedicated cable screen terminal > Quick connection via square cable clamps > Accepts from 1 to 2.5 mm cables > Bayonet slot, low insertion force for detectors |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | YBO-R/6PA(WHT) |
| Product Series | Hochiki CDX |
| Primary Power Source | 24V DC |
| System Type | 2-Wire |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki YBO-R/6PA(WHT) Conventional 2 Wire Base - White
No questions yet. Be the first to ask the question!
Product Specification for Hochiki YBO-R/6PA(WHT) Conventional 2 Wire Base - White
| Description | Hochiki Conventional Detector Mounting Base for 2-Wire Systems |
| Product Code | YBN-R/6PA(WHT) |
| Dimensions (mm): | Dia: 100 x H 13 |
| Operating voltage: | 15 – 30 V dc |
| Operating temperature: | -10oC to +50oC |
| Storage temperature: | -30oC to + 60oC |
| Maximum humidity: | 95% RH - Non Condensing (at 40oC) |
| Fixing centres: | 48 ~ 74 mm |
| Max. wire thickness: | 2.5mm2 cables |
| Colour / Material : | White / ABS |
| Weight: | 80g |
