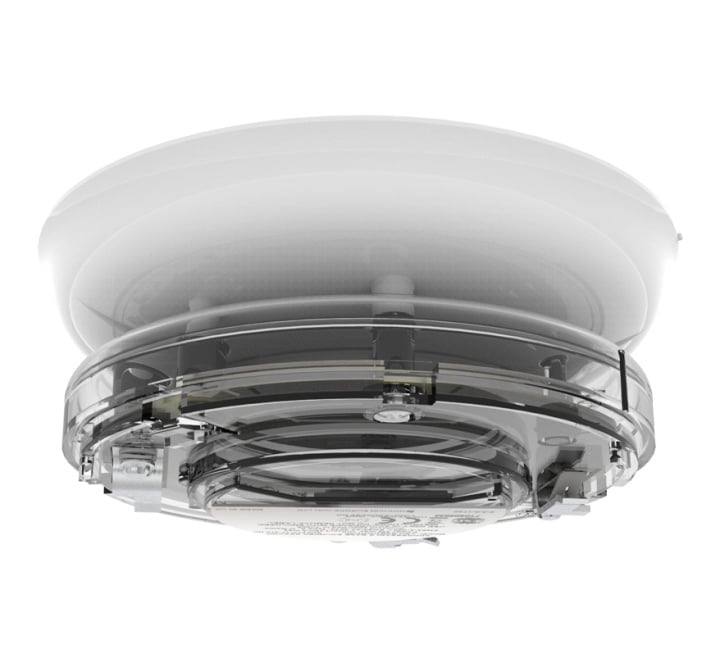

Hochiki YBO-BSB2(WHT)/RL Addressable Base Sounder VAD Beacon - White Case, Red LEDs
SKU
YBO-BSB2(WHT)/RL
£60.11
£50.09
Hochiki YBO-BSB2(WHT)/RL Addressable Base Sounder VAD Beacon - White Case, Red LEDs
In Stock
Product Details for Hochiki YBO-BSB2(WHT)/RL Addressable Base Sounder VAD Beacon - White Case, Red LEDs
The Hochiki YBO-BSB2/RL is an 'O' rated EN54-23 compliant addressable loop powered Base Sounder with integral Beacon, innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption.
The unit is designed to fit to the Standard Base (YBN-R/3) or the Isolator Base (YBN-R/3(SCI)) and can be fitted with any of the ESP Range of Sensors, Beacons or Remote Indicators.
The unit can also be converted into a wall sounder beacon with the simple addition of a cap to cover the terminals (SI/CAP2).
The sounder is Ingress Protection rated to IP21 and for internal use only.
Key Features of the YBO-BSB2(WHT)/RL |
|---|
|
> ‘O’ rated beacon to EN54-23
> Single loop address - addressed via the TCH-B200 Hand Held Programmer > Variable sound output 50 ~ 98 dB(A) (±2 dB(A)) output at 1 metre > Sounder and beacon can operate independently(1) > 0.5 or 1Hz flash frequency > Fits Hochiki standard or isolator base and supports ESP sensors, addressable beacons and addressable remote indicator > 51 user-selectable tones (all tones EN54-3 compatible) > Auto-shutdown feature prevents noise-pollution(1) > Available with red or white LEDs > Available with ivory, white or black case |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | YBO-BSB2(WHT)/RL |
| Product Series | Hochiki ESP |
| Colour | White |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki YBO-BSB2(WHT)/RL Addressable Base Sounder VAD Beacon - White Case, Red LEDs
No questions yet. Be the first to ask the question!
Product Specification for Hochiki YBO-BSB2(WHT)/RL Addressable Base Sounder VAD Beacon - White Case, Red LEDs
| Description | Hochiki Analogue Addressable Base Sounder Beacon |
| Product Code | YBO-BSB2(WHT)/RL |
| Dimensions: | W:113mm x H:113mm x D:43mm |
| Operating voltage: | 17 - 41 VDC |
| Low power mode (typ): | 110 μA |
| Quiescent current (typ): | 250 μA |
| Sounding curent (typ): | 0.8 mA (50 dB(A) @ 1 m) ~ 16 mA (98 dB(A) @ 1 m) |
| Additional current when beacon active: | + 7 mA |
| Sound output (@ 1m): | 50~98dB(A) (±2dB(A)) @24Vdc or above (EN54-3 compliant) |
| No. of tones: | 51 |
| Tone frequency range: | 300 Hz ~ 2850 Hz |
| Operating temperature range: | -10 °C to + 50 °C |
| Storage temperature range: | -30°C to +70°C |
| Maximum humidity: | 95% RH - Non Condensing (at 40°C) |
| Colour/Case material: | White / PC + PS + GF5 |
| Lens material: | Transluscent PC / Red LEDs |
| IP Rating: | IP21 |
| Base fixing centres: | 48 - 74 mm |
| Weight: | 152g |
