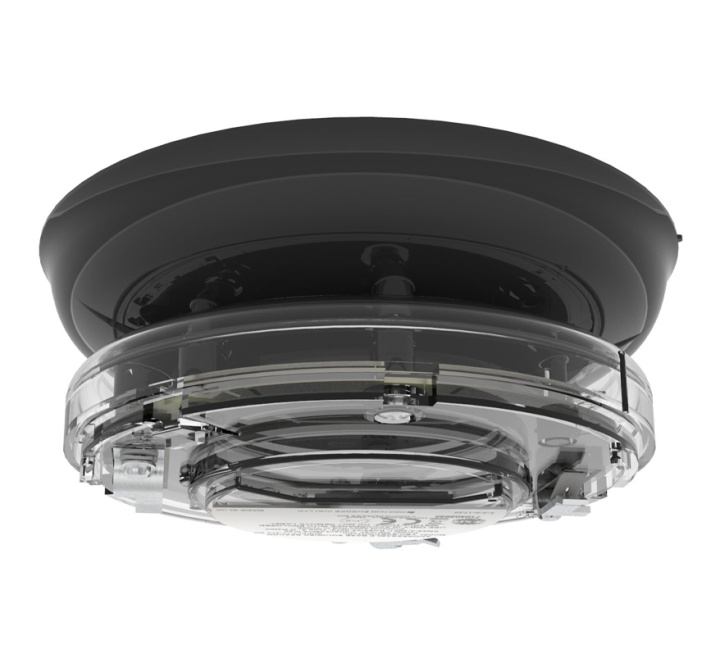

Hochiki YBO-BSB2(BLK)/WL Addressable Base Sounder VAD Beacon - Black Case, White LEDs
SKU
YBO-BSB2(BLK)/WL
£64.70
£53.92
Hochiki YBO-BSB2(BLK)/WL Addressable Base Sounder VAD Beacon - Black Case, White LEDs
Limited Stock
Product Details for Hochiki YBO-BSB2(BLK)/WL Addressable Base Sounder VAD Beacon - Black Case, White LEDs
The Hochiki YBO-BSB2(BLK)/RL is an 'O' rated EN54-23 compliant addressable loop powered base sounder with integral beacon, innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption.
The unit is designed to fit to the standard base (YBN-R/3(BLK)) and can be fitted with any of the ESP range of black sensors.
The sounder is Ingress Protection rated to IP21 and for internal use only.
Key Features of the YBO-BSB2(BLK)/WL |
|---|
|
> ‘O’ rated beacon to EN54-23
> Single loop address - addressed via the TCH-B200 Hand Held Programmer > Variable sound output 50 ~ 98 dB(A) (±2 dB(A)) output at 1 metre > Sounder and beacon can operate independently(1) > 0.5 or 1Hz flash frequency > Fits Hochiki standard or isolator base and supports ESP sensors, addressable beacons and addressable remote indicator > 51 user-selectable tones (all tones EN54-3 compatible) > Auto-shutdown feature prevents noise-pollution(1) > Available with red or white LEDs > Available with ivory, white or black case |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | YBO-BSB2(BLK)/WL |
| Product Series | Hochiki ESP |
| Colour | Black |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki YBO-BSB2(BLK)/WL Addressable Base Sounder VAD Beacon - Black Case, White LEDs
No questions yet. Be the first to ask the question!
Product Specification for Hochiki YBO-BSB2(BLK)/WL Addressable Base Sounder VAD Beacon - Black Case, White LEDs
| Description | Hochiki Analogue Addressable Base Sounder Beacon |
| Product Code | YBO-BSB2(BLK)/WL |
| Dimensions: | W:113mm x H:113mm x D:43mm |
| Operating voltage: | 17 - 41 VDC |
| Low power mode (typ): | 110 μA |
| Quiescent current (typ): | 250 μA |
| Sounding curent (typ): | 0.8 mA (50 dB(A) @ 1 m) ~ 16 mA (98 dB(A) @ 1 m) |
| Additional current when beacon active: | + 7 mA |
| Sound output (@ 1m): | 50~98dB(A) (±2dB(A)) @24Vdc or above (EN54-3 compliant) |
| No. of tones: | 51 |
| Tone frequency range: | 300 Hz ~ 2850 Hz |
| Operating temperature range: | -10 °C to + 50 °C |
| Storage temperature range: | -30°C to +70°C |
| Maximum humidity: | 95% RH - Non Condensing (at 40°C) |
| Colour/Case material: | Black / PC + PS + GF5 |
| Lens material: | Transluscent PC / White LEDs |
| IP Rating: | IP21 |
| Base fixing centres: | 48 - 74 mm |
| Weight: | 152g |
