Hochiki YBN-UA Recess Adaptor for Ivory ESP & CDX Devices (Requires Installation Kit YYA-A)
SKU
YBN-UA
£8.26
£6.88
Hochiki YBN-UA Recess Adaptor for Ivory ESP & CDX Devices (Requires Installation Kit YYA-A)
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Hochiki YBN-UA Recess Adaptor for Ivory ESP & CDX Devices (Requires Installation Kit YYA-A)
Model YBN-UA is a mounting adaptor for both the ESP and CDX range of ivory sensors and detectors and their associated mounting bases. The YBN-UA allows a base and head combination to be flush mounted by providing a recess fixing the ceiling.
It must be used with a fixing clamp kit (YYA-1) which secures the YBN-UA within a pre-cut hole up to a maximum ceiling thickness of 30mm (sold separately).

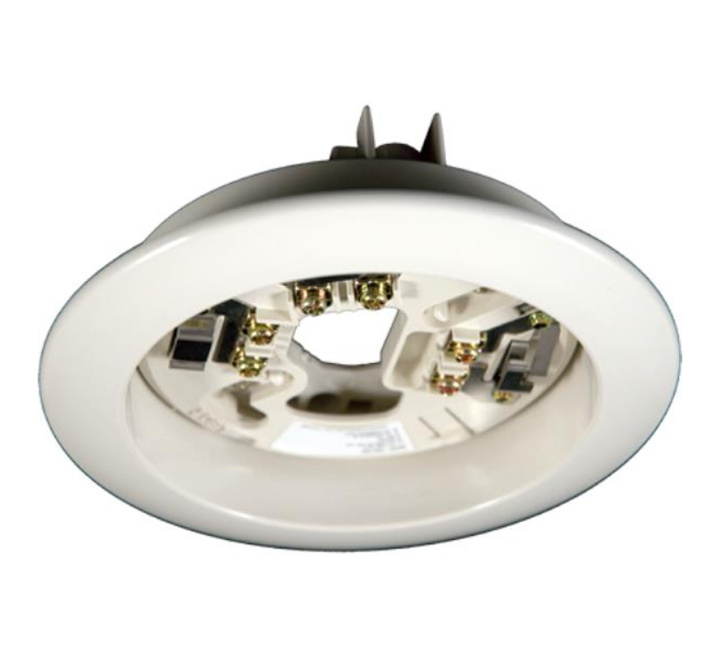

NOTE: Shown with mounting base fitted – supplied separately.
Key Features of the YBN-UA |
|---|
|
> Allows base and analogue sensor or conventional detector to be flush-mounted
> Requires fixing brackets (sold separately) > Colour-matched to existing ivory sensor/detector ranges > Sturdy construction, easy to install > Suitable for a maximum ceiling thickness of 30 mm |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | YBN-UA |
Write Your Own Review
FAQ’s for Hochiki YBN-UA Recess Adaptor for Ivory ESP & CDX Devices (Requires Installation Kit YYA-A)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki YBN-UA Recess Adaptor for Ivory ESP & CDX Devices (Requires Installation Kit YYA-A)
| Description | Hochiki Recess Base Adaptor |
| Product Code | YBN-UA |
| Dimensions: | Dia:140mm x H:44mm |
| Operating temperature: | -10oC to + 50oC |
| Storage temperature: | -30oC to + 60oC |
| Maximum Humidity : | 95% RH - Non Condensing (at 40oC) |
| Height when fitted flush: | 7 mm |
| Drilled hole size: | 115mm |
| Compatible bases: | All YBN Range, YBO-R/5 Range, YBO-R/6 Range, YBO-R/4 Range |
| Fixing centres: | 48 - 74mm |
| Colour / Material: | Ivory / ABS |
| Weight: | 65g |
