Hochiki YBN-R/6SK Conventional Schottky Diode Base - Ivory
SKU
YBN-R/6SK
£2.82
£2.35
Hochiki YBN-R/6SK Conventional Schottky Diode Base - Ivory
In Stock
Product Details for Hochiki YBN-R/6SK Conventional Schottky Diode Base - Ivory

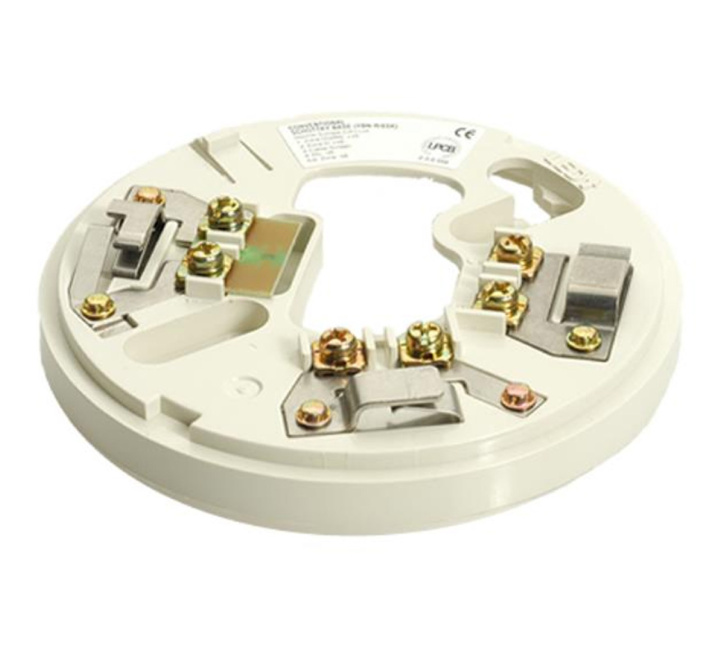

The Hochiki YBN-R/6SK is a Conventional Detector Mounting Base with in-line Schottky Diode, associated with the CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm control panels.
It is supplied with square cable clamps for secure and reliable cable termination and the base provides line continuity during detector removal. Therefore Call Points can be wired in any order on the zone providing a suitable panel and End Of Line (EOL) unit is used.
The integrated third terminal provides remote indicator output.
Key Features of the YBN-R/6SK |
|---|
|
> Integral remote indicator output
> In-line Schottky Diode for Line Continuity > Low Profile, only 8 mm > Rugged design > Quick connections via square cable clamps > Accepts 2.5 mm cables > Bayonet slot, low insertion force for detectors |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | YBN-R/6SK |
| Product Series | Hochiki CDX |
| Colour | Ivory |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki YBN-R/6SK Conventional Schottky Diode Base - Ivory
No questions yet. Be the first to ask the question!
Product Specification for Hochiki YBN-R/6SK Conventional Schottky Diode Base - Ivory
| Description | Hochiki Conventional Schottky Diode Mounting Base |
| Product Code | YBN-R/6SK |
| Dimensions (mm): | Dia: 100 x H 8 |
| Operating voltage: | 15 – 30 V dc |
| Operating temperature: | -10oC to +50oC |
| Storage temperature: | -30oC to + 60oC |
| Maximum humidity: | 95% RH - Non Condensing (at 40oC) |
| Fixing Centres (mm): | 48 ~ 74 |
| Colour / Material : | Ivory / ABS |
| Weight: | 52g |
